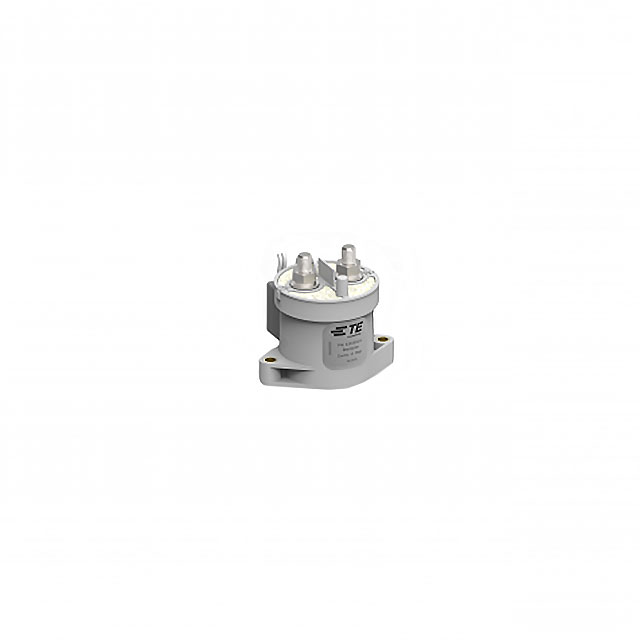

RELAY CONTACTOR SPST 500A 12V
| Part | Features | Must Operate Voltage | Mounting Type | Release Time | Coil Current | Contact Form | Switching Voltage | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Contact Material | Contact Rating (Current) | Coil Resistance | Termination Style | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Sealed - Hermetically | 9 VDC | Chassis Mount | 12 ms | 130 mA | SPST-NO (DM) (1 Form X) | 450 VDC | 6 VDC | 85 °C | -40 °C | 15 ms | Copper | 500 A | 3.1 Ohms | Stud | 12 VDC |
