R11240 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

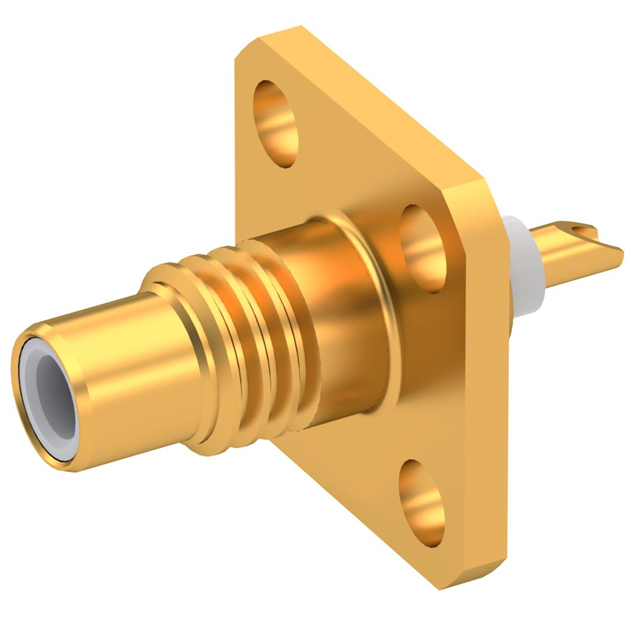

SMC / SQUARE FLANGE JACK RECEPTA
| Part | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Connector Style | Frequency - Max [Max] | Fastening Type | Shield Termination | Mounting Type | Impedance | Connector Type | Mounting Feature | Contact Termination | Features | Center Contact Material | Number of Ports | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 335 V | Gold | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Brass | SMC | 10 GHz | Threaded | Solder | Panel Mount | 50 Ohms | Jack Male Pin | Flange | Solder Cup | Extended Insulation | Brass | 1 | Gold |
