FR20205HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

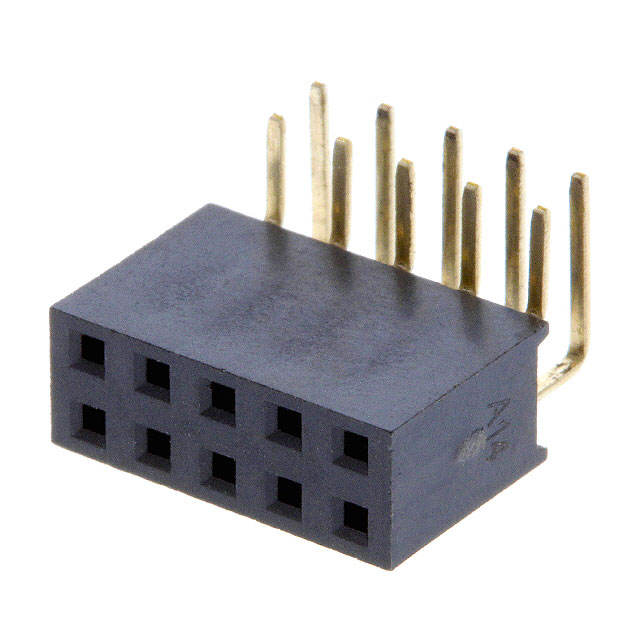

RECEPTACLE, THR, DUAL ROW, .100"
| Part | Contact Shape | Contact Material | Insulation Material | Contact Finish - Mating | Mounting Type | Ingress Protection | Contact Finish Thickness - Mating | Number of Positions | Insulation Height | Insulation Height | Insulation Color | Termination | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Pitch - Mating | Pitch - Mating | Contact Type | Number of Positions Loaded | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Square | Copper | Polyester Polyethylene Terephthalate (PET) | Gold | Right Angle Through Hole | IP00 | Flash | 10 | 0.197 " | 5 mm | Black | Solder | 2 | -40 C | 105 ░C | Receptacle | 0.1 " | 2.54 mm | Female Socket | All | 0.1 in | 2.54 mm | 0.114 in | 2.9 mm | Push-Pull |
