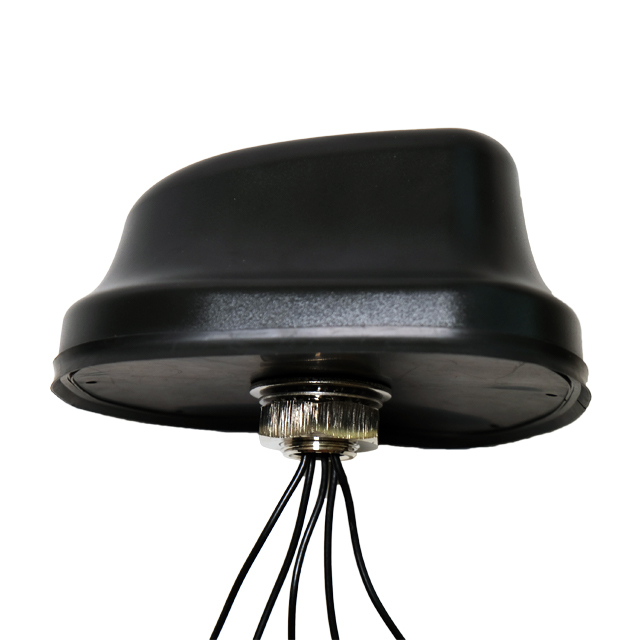

AECR1808A12 Series
Manufacturer: Abracon LLC
Beta
⌘K
ANTENNAS MIMO EXTERNAL ANTENNAS DOME SCREW MOUNT SMA
| Part | Mounting Type | Number of Bands | RF Family/Standard | Ingress Protection | Height (Max) [z] | Height (Max) [z] | Termination | Termination | Frequency Group | Features | Frequency (Center/Band) | Applications | Frequency Range [Max] | Frequency Range [Min] | Gain | Antenna Type | VSWR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | Screw Mount | 6 | Cellular Navigation WiFi | IP67 | 85 mm | 3.346 in | 5 | SMA Male | Wide Band | Cable - 3m LNA | 1.5835 GHz 2.2 GHz 2.44 GHz 3.35 GHz 5.4125 GHz 829 MHz | BeiDou Galileo GLONASS GNSS GPS LTE Wi-Fi | 1.606 GHz 2.4835 GHz 2.69 GHz 3.8 GHz 5.925 GHz 960 MHz | 1.561 GHz 1.71 GHz 2.4 GHz 2.9 GHz 4.9 GHz 698 MHz | 2 dBi 5 dBi | Dome | 2 2.5 3 |
