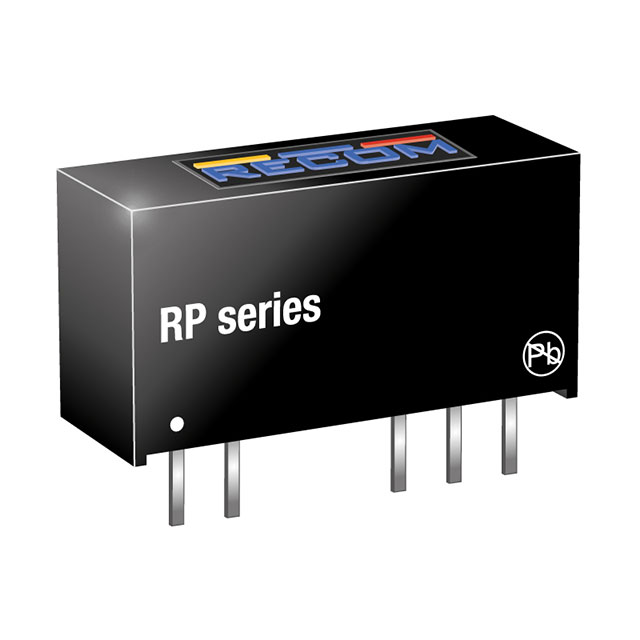

RP Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 5.2KV UNREG 9VIN +/-12VOUT

...

Part	Applications	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Output 2	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Current - Output (Max)	Efficiency	Current - Output (Max) [Max]	Current - Output (Max) [Min]
Recom Power RP-0912D	ITE (Commercial) Medical	42 mA	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP	-12 V	2	12 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 5 Leads	9.9 V	Isolated Module	8.1 V
Recom Power RP-153.3D	ITE (Commercial) Medical	152 mA	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP	-3.3 V	2	3.3 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 5 Leads	16.5 V	Isolated Module	13.5 V	152 mA	70 %
Recom Power RP-1224S/X2	ITE (Commercial) Medical		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP		1	24 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 4 Leads	13.2 V	Isolated Module	10.8 V		80 %	42 mA
Recom Power RP-0515S/X2	ITE (Commercial) Medical		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP		1	15 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 4 Leads	5.5 V	Isolated Module	4.5 V		80 %	66 mA
Recom Power RP-1209S	ITE (Commercial) Medical		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP		1	9 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 4 Leads	13.2 V	Isolated Module	10.8 V		75 %	111 mA
Recom Power RP-1215S/P/X2	ITE (Commercial) Medical		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP		1	15 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 4 Leads	13.2 V	Isolated Module	10.8 V		80 %	66 mA
Recom Power RP-1505S	ITE (Commercial) Medical		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP		1	5 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 4 Leads	16.5 V	Isolated Module	13.5 V		72 %	200 mA
Recom Power RP-121509D	ITE (Commercial) Medical		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP	-9 V	2	15 V	5.2 kV	85 °C	-40 C	Through Hole	7-DIP Module 5 Leads	13.2 V	Isolated Module	10.8 V			56 mA	33 mA
Recom Power RP-1524S/P	ITE (Commercial) Medical		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP		1	24 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 4 Leads	16.5 V	Isolated Module	13.5 V		80 %	42 mA
Recom Power RP-2424D/P	ITE (Commercial) Medical	21 mA	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	SCP	-24 V	2	24 V	5.2 kV	85 °C	-40 C	Through Hole	7-SIP Module 5 Leads	26.4 V	Isolated Module	21.6 V		80 %
