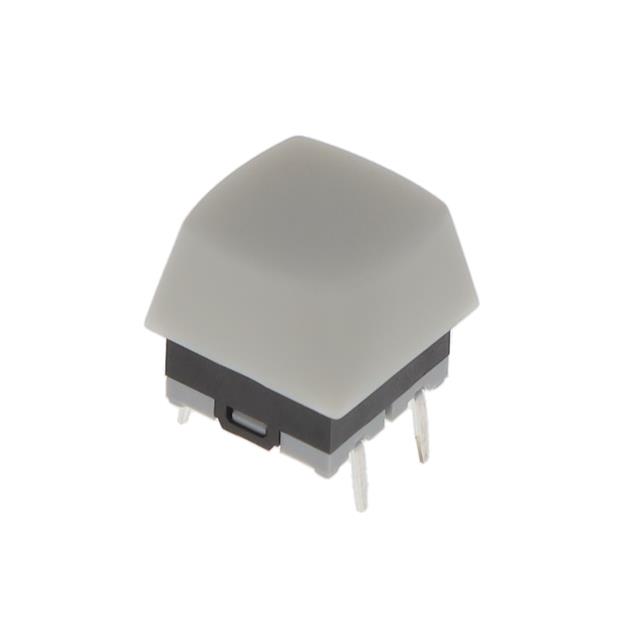

JB Series

Catalog

TACTILE SWITCHES LOW PROFILE TACTILE ILLUMINATED/PC

Part	Mechanical Life	Actuator Material	Switch Travel	Mounting Type	Actuator Orientation	Termination Style	Operating Force	Circuit	Features	Actuator Type	Illumination	Actuator Height off PCB, Vertical [z]	Illumination Type, Color	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Switch Function	Ingress Protection
NKK Switches JB15HLPF-B	1000000 Cycles	Polyacetal	0.3 mm	Through Hole	Top Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Square Button	Illuminated	11.2 mm	Green LED	10 mm	10 mm	-25 °C	70 °C	0.125 A 24 VDC	2.1 VDC	Off-Mom	IP67 - Dust Tight Waterproof

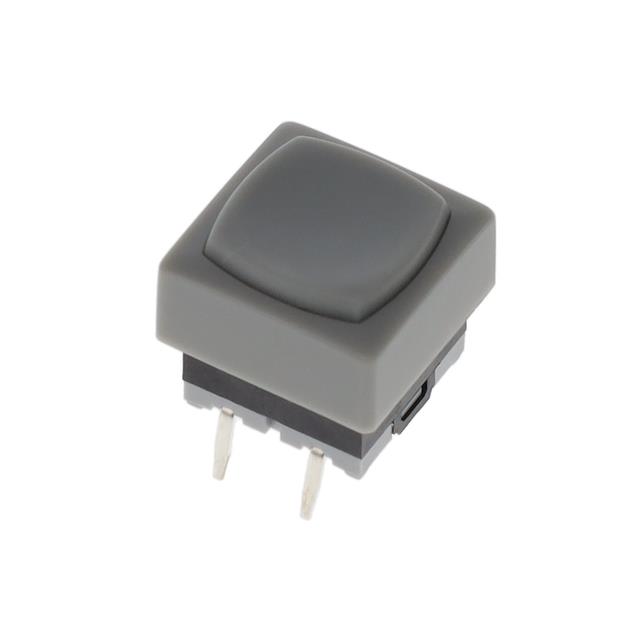

NKK Switches JB15HAP-1H				Through Hole	Top Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Square Button	Non-Illuminated	14.7 mm		10 mm	10 mm	-25 °C	70 °C	0.125 A 24 VDC		Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches JB15HKH				Right Angle Through Hole	Side Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Plunger for Cap	Non-Illuminated			10.8 mm	6.54 mm	-25 °C	70 °C	0.125 A 24 VDC		Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches JB15HBPC-BC	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	Through Hole	Top Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Square Button	Illuminated	14.7 mm	LED Red	10 mm	10 mm	-25 °C	70 °C	0.125 A 24 VDC	1.8 VDC	Off-Mom	IP67 - Dust Tight Waterproof

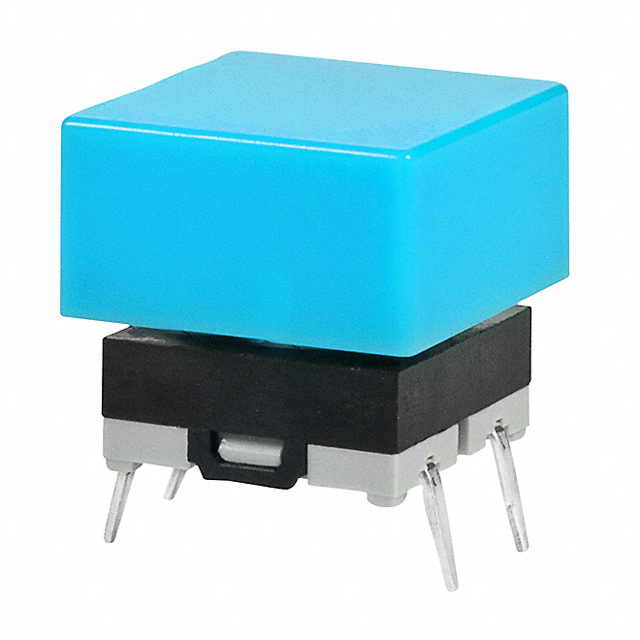

NKK Switches JB15HKP-2G	1000000 Cycles	Polyacetal	0.3 mm	Through Hole	Top Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Square Button	Non-Illuminated	11.2 mm		10 mm	10 mm	-25 °C	70 °C	0.125 A 24 VDC		Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches JB15HAP-1E				Through Hole	Top Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Square Button	Non-Illuminated	14.7 mm		10 mm	10 mm	-25 °C	70 °C	0.125 A 24 VDC		Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches JB15KP-5A				Through Hole	Top Actuated	PC Pin	176 gf	SPST-NO	Process Sealed	Square Button	Non-Illuminated	11.2 mm		10 mm	10 mm	-25 °C	70 °C	0.05 A 24 VDC		Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches JB15LPC-BE	5000000 Cycles	Polyacetal	0.25 mm	Through Hole	Top Actuated	PC Pin	176 gf	SPST-NO	Process Sealed	Square Button	Illuminated	11.2 mm	LED Red	10 mm	10 mm	-25 °C	70 °C	0.05 A 24 VDC	1.8 VDC	Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches JB15HKP-2C	1000000 Cycles	Polyacetal	0.3 mm	Through Hole	Top Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Square Button	Non-Illuminated	11.2 mm		10 mm	10 mm	-25 °C	70 °C	0.125 A 24 VDC		Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches JB15HAP-2H				Through Hole	Top Actuated	PC Pin	265 gf	SPST-NO	Process Sealed	Square Button	Non-Illuminated	14.7 mm		10 mm	10 mm	-25 °C	70 °C	0.125 A 24 VDC		Off-Mom	IP67 - Dust Tight Waterproof
