NTD Series

Manufacturer: Chemi-Con

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 1UF 100V 20% X7R

Part	Voltage - Rated	Mounting Type	Package / Case	Capacitance	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Lead Style	Height - Seated (Max)	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Ratings	Height - Seated (Max) [Max]	Size / Dimension [y]
Chemi-Con KTD101B105M32A0T00	100 V	Through Hole	Radial	1 µF	20 %	0.197 in	0.138 in	3.5 mm	5 mm	SMPS Filtering	Straight	6 mm	0.236 "	-55 C	125 °C	X7R	0.197 "	5 mm
Chemi-Con KTD250B336K55A0T00	25 VDC	Through Hole	Radial	33 ÁF	10 %	0.295 "	0.177 "	4.5 mm	7.5 mm	Automotive SMPS Filtering	Formed Leads		0.354 in	-55 C	125 °C	X7R	0.197 "	5 mm	9 mm	AEC-Q200
Chemi-Con KTD250B335M32A0T00	25 VDC	Through Hole	Radial	3.3 µF	20 %	0.197 in	0.138 in	3.5 mm	5 mm	SMPS Filtering	Straight	6 mm	0.236 "	-55 C	125 °C	X7R	0.197 "	5 mm
Chemi-Con KTD350B685K43A0T00	35 V	Through Hole	Radial	6.8 µF	10 %	0.256 in	0.157 "	4 mm	6.5 mm	Automotive SMPS Filtering	Formed Leads			-55 C	125 °C	X7R	0.197 "	5 mm	0.256 in	AEC-Q200	6.5 mm

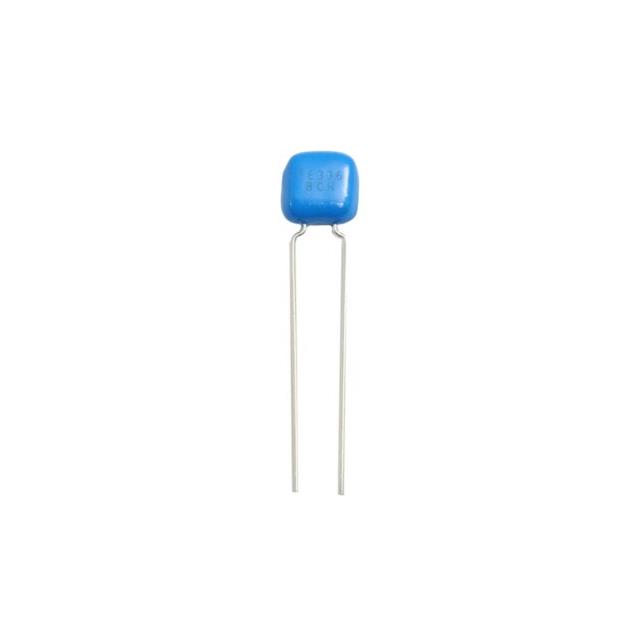

Chemi-Con KTD250B476K76A0T00	25 VDC	Through Hole	Radial	47 µF	10 %	0.394 in	0.217 in		10 mm	Automotive SMPS Filtering	Formed Leads			-55 C	125 °C	X7R	0.197 "	5 mm	0.453 in	AEC-Q200	11.5 mm	5.5 mm
Chemi-Con KTD500B156M55A0T00	50 VDC	Through Hole	Radial	15 µF	20 %	0.295 "	0.177 "	4.5 mm	7.5 mm	SMPS Filtering	Straight		0.354 in	-55 C	125 °C	X7R	0.197 "	5 mm	9 mm
Chemi-Con KTD500B475M43A0T00	50 VDC	Through Hole	Radial	4.7 µF	20 %	0.256 in	0.157 "	4 mm	6.5 mm	SMPS Filtering	Straight		0.354 in	-55 C	125 °C	X7R	0.197 "	5 mm	9 mm
Chemi-Con KTD101B684M32A0T00	100 V	Through Hole	Radial	0.68 µF	20 %	0.197 in	0.138 in	3.5 mm	5 mm	SMPS Filtering	Straight	6 mm	0.236 "	-55 C	125 °C	X7R	0.197 "	5 mm
Chemi-Con KTD251B684M43A0T00	250 V	Through Hole	Radial	0.68 µF	20 %	0.256 in	0.157 "	4 mm	6.5 mm	SMPS Filtering	Straight			-55 C	125 °C	X7R	0.197 "	5 mm	0.256 in		6.5 mm
Chemi-Con KTD101B475K43A0T00	100 V	Through Hole	Radial	4.7 µF	10 %	0.256 in	0.157 "	4 mm	6.5 mm	Automotive SMPS Filtering	Formed Leads			-55 C	125 °C	X7R	0.197 "	5 mm	0.256 in	AEC-Q200	6.5 mm
