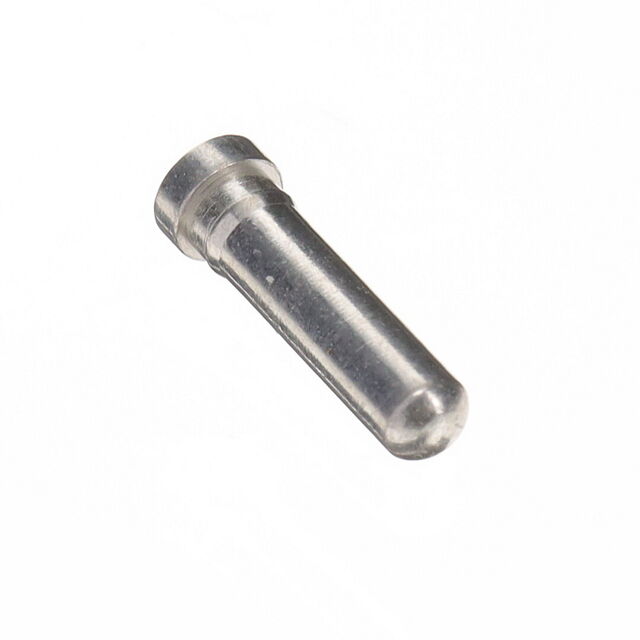

8836-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Mounting Type | Termination | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 7.16 mm | 0.282 in | Brass Alloy | 1.83 mm | 0.072 in | 7.92 mm | 0.312 " | PC Pin | 50 µin | 1.27 µm | Wire | 0.093 in | 2.36 mm | Non-Insulated | Through Hole | Press-Fit | Gold | 0.075 " | 1.91 mm |
 Mill-Max Manufacturing Corp. | 7.16 mm | 0.282 in | Brass Alloy | 1.83 mm | 0.072 in | 7.92 mm | 0.312 " | PC Pin | 200 Áin | 5.08 Ám | Wire | 0.093 in | 2.36 mm | Non-Insulated | Through Hole | Press-Fit | Tin-Lead | 0.075 " | 1.91 mm |
