ANT-B28 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
ANTENNA 1/4 WAVE WHIP LTE B28 RG174
| Part | VSWR | Number of Bands | Power - Max [Max] | Height (Max) [Max] [z] | Height (Max) | Termination | Frequency Group [Max] | Frequency Group | Frequency Group [Min] | Frequency (Center/Band) | Antenna Type | RF Family/Standard | Features | Mounting Type | Gain | Frequency Range [Min] | Frequency Range [Max] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.7 | 1 | 10 W | 3.874 in | 98.4 mm | Solder | 1 GHz | UHF | 300 MHz | 750 MHz | Whip Straight | Cellular | Cable - 216mm O-Ring Compatible | Panel Mount | 1.7 dBi | 700 MHz | 810 MHz | Cellular GSM LTE NB-IoT UMTS |

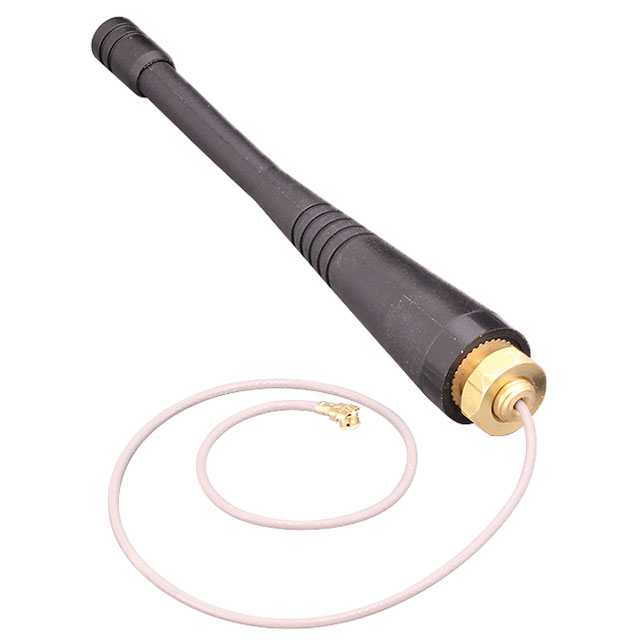

 TE Connectivity AMP Connectors | 2.7 | 1 | 10 W | 3.874 in | 98.4 mm | I-PEX MHF1 U.FL (UMCC) | 1 GHz | UHF | 300 MHz | 750 MHz | Whip Straight | Cellular | Cable - 216mm O-Ring Compatible | Panel Mount | 1.7 dBi | 700 MHz | 810 MHz | Cellular GSM LTE NB-IoT UMTS |

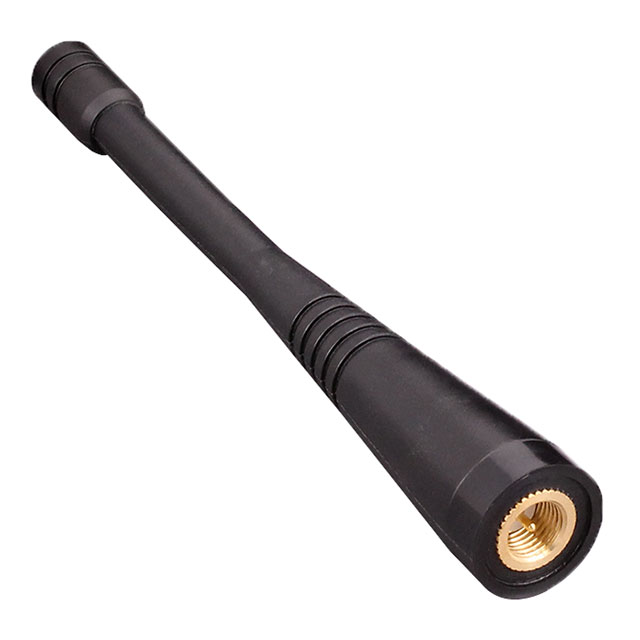

 TE Connectivity AMP Connectors | 2.7 | 1 | 10 W | 3.874 in | 98.4 mm | 1 GHz | UHF | 300 MHz | 700 MHz 750 MHz 800 MHz | Whip Straight | Cellular | O-Ring Compatible | Connector Mount | 1.7 dBi | 703 MHz | 810 MHz | GSM LTE NB-IoT UMTS |
