AIMB-U233 Series

Catalog

SBC 2.2GHZ 1 CORE 16GB/0GB RAM

Part	RAM Capacity/Installed	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Cooling Type	RS-232 (422, 485) [custom]	Ethernet	Ethernet	Digital I/O Lines	Video Outputs	Operating Temperature [Max]	Expansion Site/Bus	Number of Cores [custom]	Core Processor	Form Factor	Form Factor	USB	Power (Watts)	Storage Interface	Speed

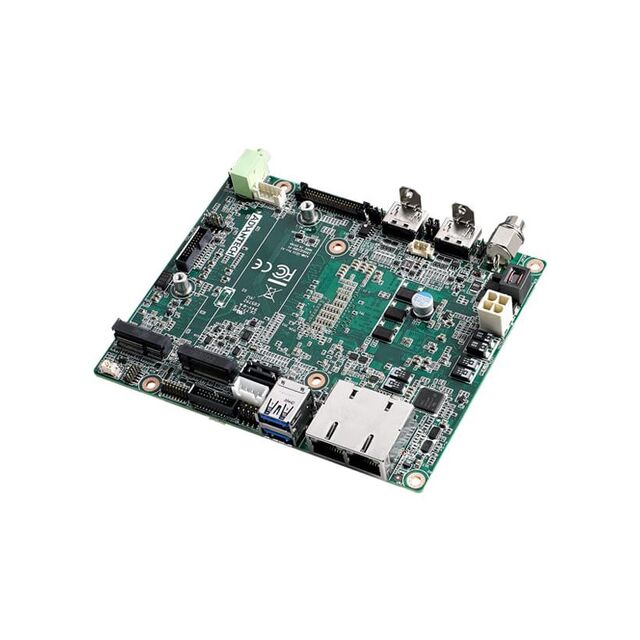

Advantech Corporation AIMB-U233E-U3A1E	0 GB 16 GB	4.4 "	111.76 mm	5.4 in	137.16 mm	Fan	2	10 Mbps 100 Mbps 1000 Mbps	GbE RJ45	16	eDP HDMI LVDS	60 °C	M.2 PCIe	1	Intel Core i3-8145UE	2230	E-Key M.2	USB 2.0 (2) USB 3.2 (2)	6.25 W	M.2 SATA 3.0 (1)	2.2 GHz
Advantech Corporation AIMB-U233E-U7A1E	0 GB 16 GB	4.4 "	111.76 mm	5.4 in	137.16 mm	Fan	2	10 Mbps 100 Mbps 1000 Mbps	GbE RJ45	16	eDP HDMI LVDS	60 °C	M.2 PCIe	1	Intel Core i7-8665UE	2230	E-Key M.2	USB 2.0 (2) USB 3.2 (2)	6.25 W	M.2 SATA 3.0 (1)	1.7 GHz
Advantech Corporation AIMB-U233E-U7A1E	0 GB 16 GB	4.4 "	111.76 mm	5.4 in	137.16 mm	Fan	2	10 Mbps 100 Mbps 1000 Mbps	GbE RJ45	16	eDP HDMI LVDS	60 °C	M.2 PCIe	1	Intel Core i7-8665UE	2230	E-Key M.2	USB 2.0 (2) USB 3.2 (2)	6.25 W	M.2 SATA 3.0 (1)	1.7 GHz
Advantech Corporation AIMB-U233E-U3A1E	0 GB 16 GB	4.4 "	111.76 mm	5.4 in	137.16 mm	Fan	2	10 Mbps 100 Mbps 1000 Mbps	GbE RJ45	16	eDP HDMI LVDS	60 °C	M.2 PCIe	1	Intel Core i3-8145UE	2230	E-Key M.2	USB 2.0 (2) USB 3.2 (2)	6.25 W	M.2 SATA 3.0 (1)	2.2 GHz
