9001K Series

Catalog

SELECTOR SWITCH OPERATOR 30MM T-K ROHS COMPLIANT: YES

Part	Type	(Select First, Then Apply Filters) Compatible Series	Illumination	Actuator Type	Requires	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Termination Style	Switch Function	Illumination Type, Color	Circuit	Mounting Type	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]	Current Rating (Amps)	Mechanical Life	Voltage Rating - DC	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Switch Type	Color	Shape
SCHNEIDER ELECTRIC 9001K53J35LGFG	Momentary	Schneider Harmony 9001K	Illuminated - Green	Selector	Contact Block(s) Illumination Source	30 mm
SCHNEIDER ELECTRIC 9001K2L38LGG	Momentary	Schneider Harmony 9001K	Illuminated - Green	Pushbutton Round	Contact Block(s) Illumination Source	30 mm
SCHNEIDER ELECTRIC 9001K1L35RH13	Illuminated Standard			Button Flush Round		30 mm	Red	Screw Terminal	On-On	Incandescent Red	SPDT	Panel Mount Front	24 VAC/DC	28 VAC/DC	10 A

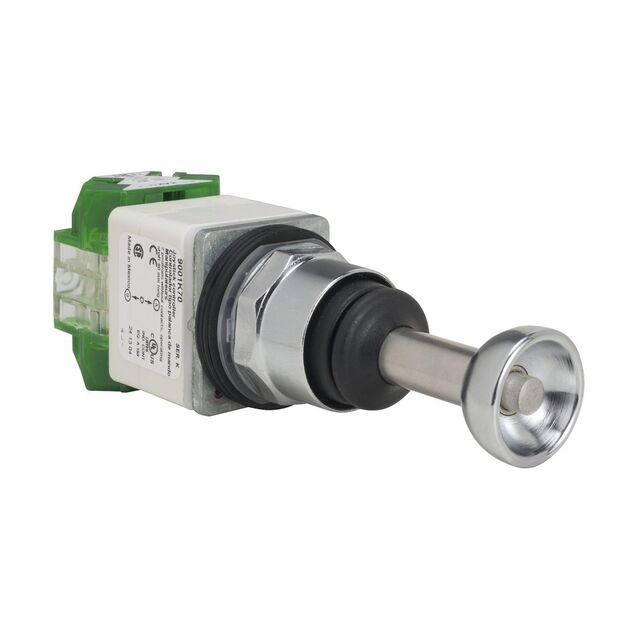

SCHNEIDER ELECTRIC 9001K70H7	Joystick 2 - Axis			Joystick		30 mm		Screw Terminal	2-Way Directional			Panel Mount
SCHNEIDER ELECTRIC 9001K2L38GH13	Illuminated Standard			Button Round		30 mm	Green	Screw Terminal	On-On	Green Incandescent	SPDT	Panel Mount Front			550 mA	5000000 Cycles	125 VDC	120 VAC/DC	-25 °C	70 °C	IP66 - Dust Tight Water Resistant
SCHNEIDER ELECTRIC 9001K11J38GH13	Maintained	Schneider Harmony 9001K	Illuminated - Green	Selector	Contact Block(s) Illumination Source	30 mm
SCHNEIDER ELECTRIC 9001K16B			Non-Illuminated									Snap Fit										Pushbutton	Black	Round
SCHNEIDER ELECTRIC 9001K11J35LGG	Maintained	Schneider Harmony 9001K	Illuminated - Green	Selector	Contact Block(s) Illumination Source	30 mm

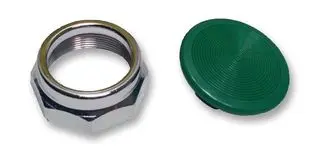

SCHNEIDER ELECTRIC 9001K16G			Non-Illuminated									Snap Fit										Pushbutton	Green	Round

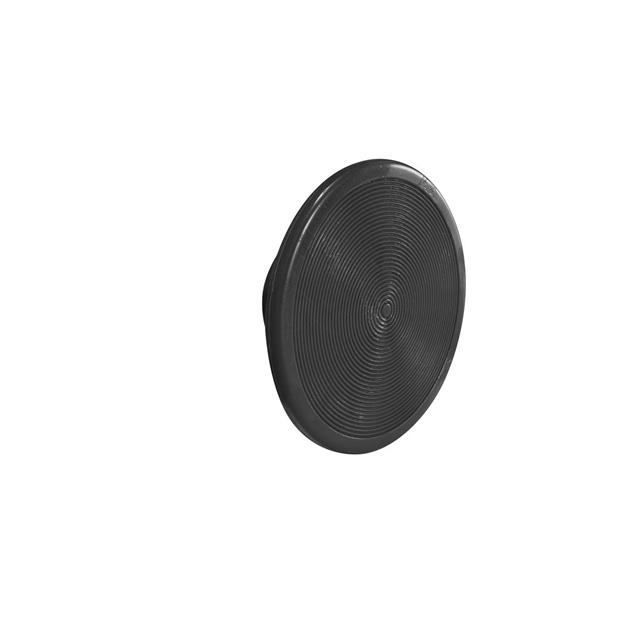

SCHNEIDER ELECTRIC 9001K93B			Non-Illuminated									Screw On										Pushbutton	Black	Round
