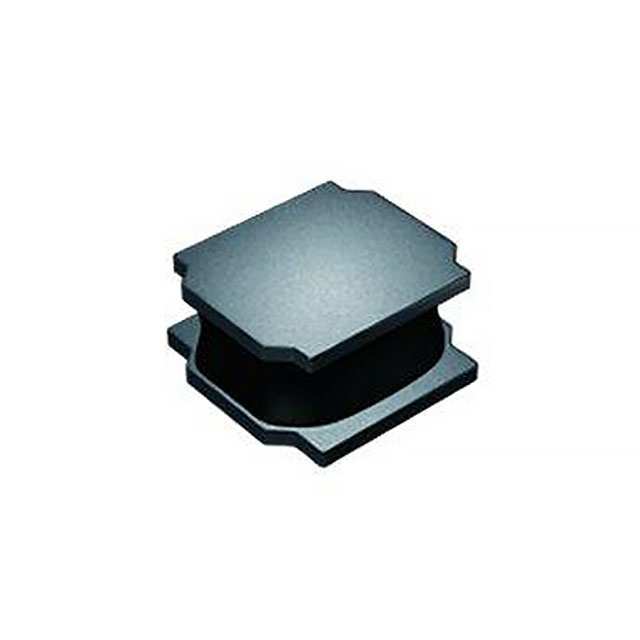

NRV Series

Catalog

POWER INDUCTORS - SMD 963-LSXPD3030MKT6R8M RPLCMT PN 3012 6.8UH 360MOHMS

Part	Material - Core	Type	Current Rating (Amps)	Inductance Frequency - Test	Current - Saturation (Isat)	Package / Case	Shielding	Mounting Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Inductance	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Ratings
Taiyo Yuden NRV3012T6R8M	Ferrite	Drum Core Wirewound	650 mA	100 kHz	950 mA	Nonstandard	Shielded	Surface Mount	20 %	120 °C	-25 °C	1.2 mm	0.047 "	360 mOhm	6.8 µH	40 MHz	3 mm	0.118 in	3 mm	0.118 "
Taiyo Yuden NRV2012T2R2MGF	Ferrite	Drum Core Wirewound	1.2 A	100 kHz	1.6 A	Nonstandard	Unshielded	Surface Mount	20 %	120 °C	-25 °C	1.2 mm	0.047 "		2.2 µH		2 mm	0.079 in	2 mm	0.079 in	154.8 mOhm
Taiyo Yuden NRV2012T1R5NGFV	Ferrite	Drum Core Wirewound	1.4 A	100 kHz	1.8 A	Nonstandard	Unshielded	Surface Mount	30 %	125 °C	-40 C	1.2 mm	0.047 "	120 mOhm	1.5 µH		2 mm	0.079 in	2 mm	0.079 in		AEC-Q200
Taiyo Yuden NRV3012T2R2M	Ferrite	Drum Core Wirewound	1.1 A	100 kHz	1.8 A	Nonstandard	Shielded	Surface Mount	20 %	125 °C	-25 °C	1.2 mm	0.047 "		2.2 µH		3 mm	0.118 in	3 mm	0.118 "	144 mOhm
