TR9CR6000 Series

Catalog

AC/DC DESKTOP ADAPTER 30V 180W

Part	Power (Watts)	Input Connector	Applications	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Form	No Load Power Consumption	Output Connector	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Standard Number	Voltage - Output	Region Utilized	Current - Output (Max) [Max]	Polarization	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Approval Agency

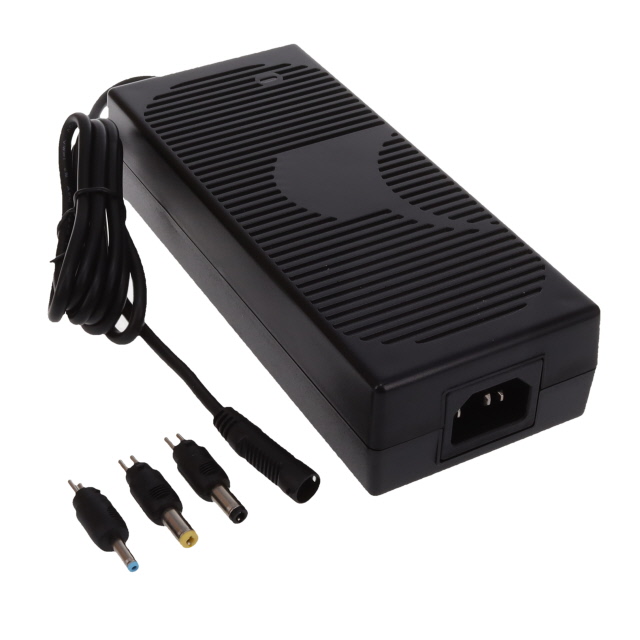

GlobTek, Inc. TR9CR6000T00CIMR6B	180 W	IEC 320-C14	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	40 °C	-10 °C	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	Desktop (Class I)	150 mW	Barrel Plug Kit (1.3mm x 3.5mm	CoC Tier 1 Level VI	264 VAC	90 VAC	1.2 m	47.2 in	60335-1 60601-1 60950-1 62368-1	30 V	International	6 A
GlobTek, Inc. TR9CR6000LRPIMR6B	180 W	IEC 320-C14	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	40 °C	-10 °C	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	Desktop (Class I)	150 mW	Barrel Plug R/A	CoC Tier 2 Level VI	264 VAC	90 VAC	1.2 m	47.2 in		30 V	International	6 A	Positive Center	5.5 mm	11 mm	2.5 mm

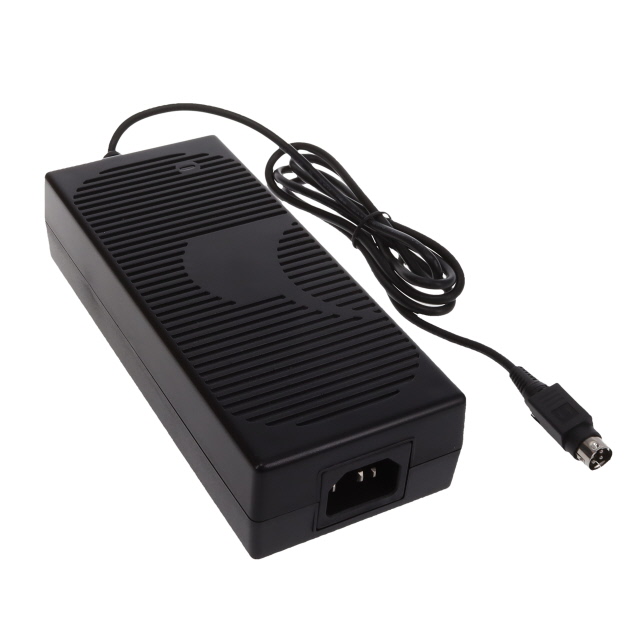

GlobTek, Inc. TR9CR6000YL4IMR6B	180 W	IEC 320-C14	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	40 °C	-10 °C	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	Desktop (Class I)	150 mW	Power DIN 4 Pin	CoC Tier 1 Level VI	264 VAC	90 VAC	1.2 m	47.2 in	60335-1 60601-1 60950-1 62368-1	30 V	International	6 A					CB CCC CE cETLus EAC VCCI

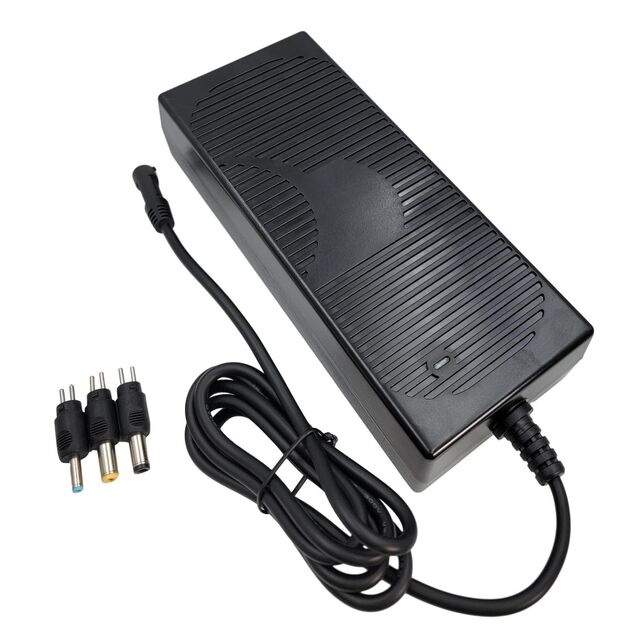

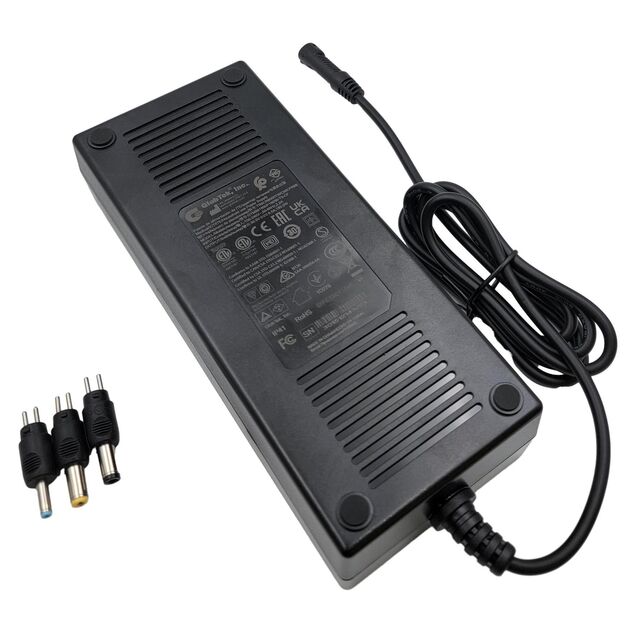

GlobTek, Inc. TR9CR6000T00CIMCFR6B	180 W	IEC 320-C14	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	40 °C	-10 °C	2.91 in	6.93 "	40 mm	74 mm	1.58 in	176 mm	Desktop (Class I)	150 mW	Barrel Plug Kit (1.3mm x 3.5mm	CoC Tier 1 Level VI	264 VAC	90 VAC	1.2 m	47.2 in	60335-1 60601-1 60950-1 62368-1	30 V	International	6 A
