TPS566235 Series
Manufacturer: Texas Instruments
Beta
⌘K

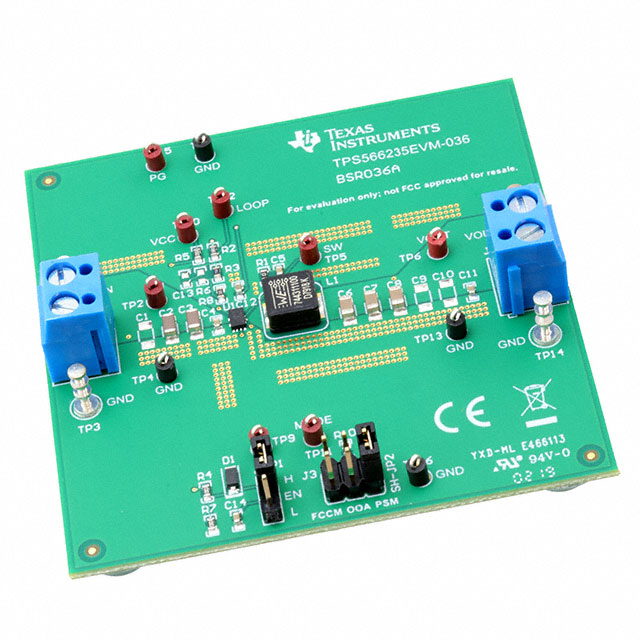

EVAL BOARD FOR TPS566235
| Part | Frequency - Switching | Utilized IC / Part | Voltage - Output | Supplied Contents | Outputs and Type | Outputs and Type | Regulator Topology | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Contents | Board Type | Mounting Type | Topology | Supplier Device Package | Voltage - Input (Min) [Min] | Voltage - Output (Min/Fixed) | Output Type | Voltage - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Function | Synchronous Rectifier | Number of Outputs | Voltage - Input (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 600 kHz | TPS566235 | 1.05 V | Board(s) | 1 Non-Isolated Output Non-Isolated | 1 | Buck | DC/DC Step Down | 18 V | 4.5 V | 6 A | Board(s) | Fully Populated | |||||||||||||||

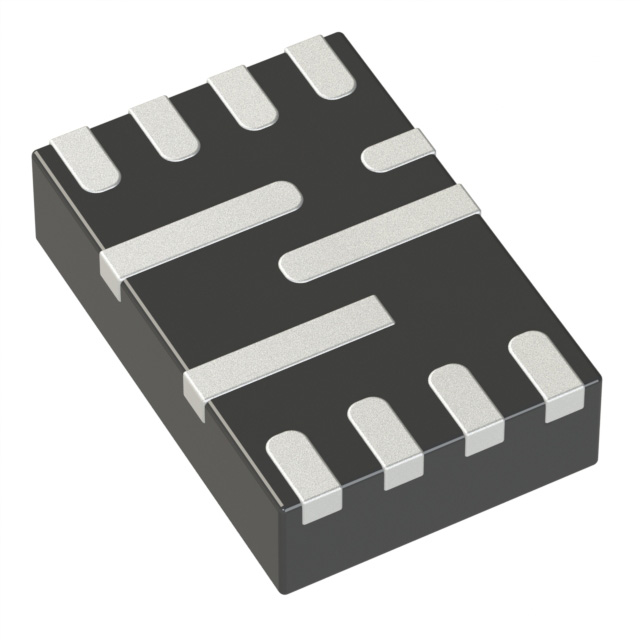

 Texas Instruments | 600 kHz | 6 A | Surface Mount | Buck | 13-VQFN-HR (3x2) | 4.5 V | 0.6 V | Adjustable | 7 V | -40 °C | 125 ¯C | Positive | Step-Down | 1 | 18 V | 13-PowerVFQFN |
