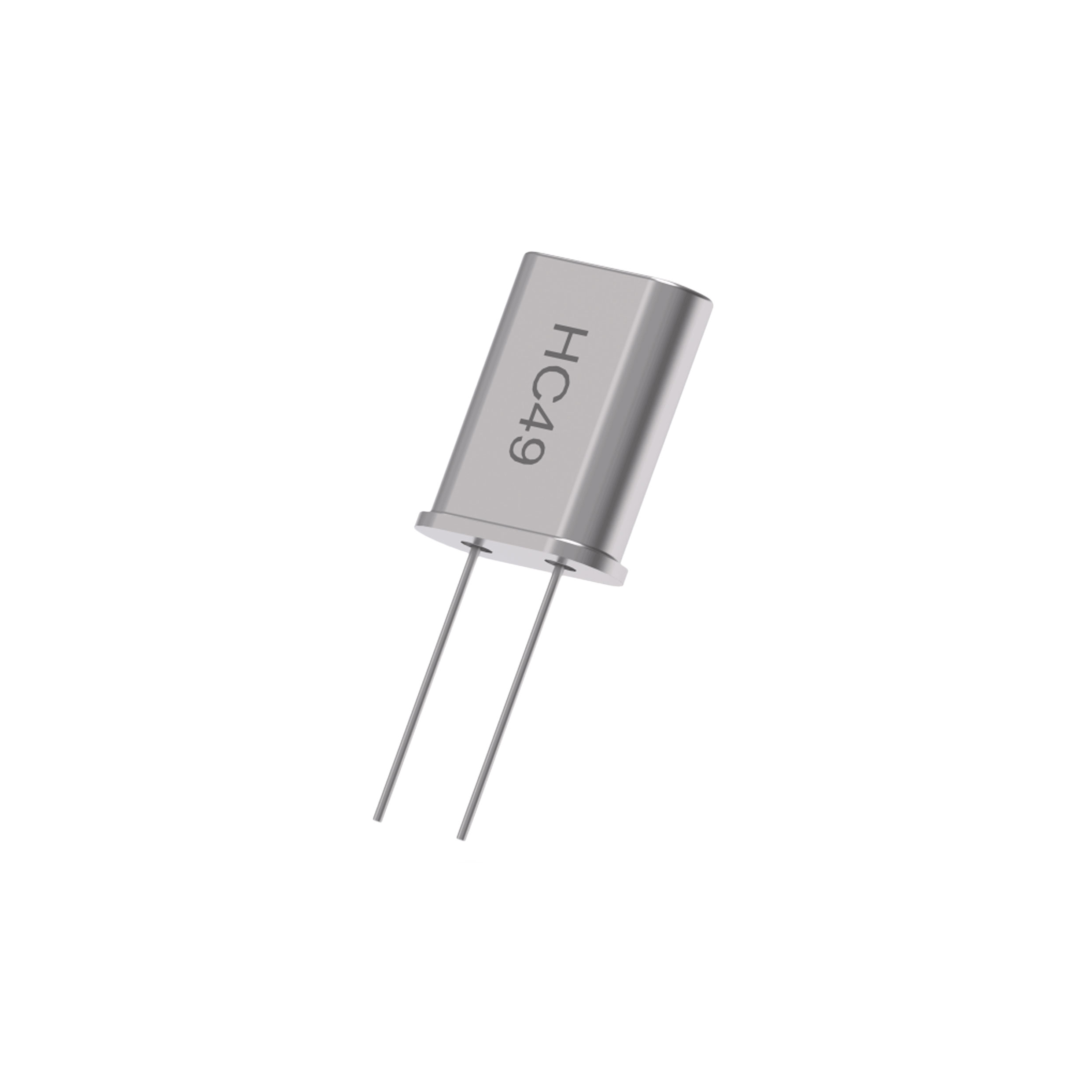

HC49 Series

Manufacturer: IQD

Catalog

CRYSTALS 11.05920MHZ 11.05 X4.65 X13.46MM

Part	Frequency Stability	Frequency	Package / Case	Load Capacitance	Frequency Tolerance	Operating Mode	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
IQD LFXTAL003515BULK	30 ppm	11.0592 MHz	HC-49/U	20 pF	20 ppm	Fundamental	MHz Crystal	-10 °C	60 °C	4.65 mm	0.435 "	0.183 "	11.05 mm	35 Ohms	Through Hole	0.53 in	13.46 mm
IQD LFXTAL003206BULK	30 ppm	12 MHz	HC-49/U	30 pF	20 ppm	Fundamental	MHz Crystal	-10 °C	60 °C	4.65 mm	0.435 "	0.183 "	11.05 mm	35 Ohms	Through Hole	0.53 in	13.46 mm
IQD LFXTAL003231BULK	30 ppm	16 MHz	HC-49/U	30 pF	20 ppm	Fundamental	MHz Crystal	-10 °C	60 °C	4.65 mm	0.435 "	0.183 "	11.05 mm	35 Ohms	Through Hole	0.53 in	13.46 mm
IQD LFXTAL003320BULK	50 ppm	24 MHz	HC-49/U		20 ppm	Fundamental	MHz Crystal	-10 °C	60 °C	4.65 mm	0.435 "	0.183 "	11.05 mm	35 Ohms	Through Hole	0.53 in	13.46 mm
IQD LFXTAL003257Bulk	50 ppm	3.6864 MHz	HC-49/U	30 pF	20 ppm	Fundamental	MHz Crystal	-10 °C	60 °C	4.65 mm	0.435 "	0.183 "	11.05 mm	150 Ohms	Through Hole	0.53 in	13.46 mm
IQD LFXTAL003312BULK	50 ppm	22.1184 MHz	HC-49/U		20 ppm	Fundamental	MHz Crystal	-10 °C	60 °C	4.65 mm	0.435 "	0.183 "	11.05 mm	35 Ohms	Through Hole	0.53 in	13.46 mm
