3221-26 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER SMD 26POS 1.27MM

Part	Contact Finish Thickness - Post	Features	Insulation Material	Style	Mounting Type	Termination	Contact Material	Material Flammability Rating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Shrouding	Number of Rows [custom]	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Fastening Type	Connector Type	Contact Finish - Mating	Insulation Color	Number of Positions	Contact Finish Thickness - Mating	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
CNC Tech 3221-26-0300-00-TR	Flash	Keying Slot Pick and Place	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Surface Mount	Solder	Brass	UL94 V-0	Square	-40 C	105 ░C	1.27 mm	0.05 in	Male Pin	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2	50 VAC	0.213 "	5.4 mm	Push-Pull	Header	Gold	Black	26	Flash	All	1 A
CNC Tech 3221-26-0300-00	Flash	Keying Slot	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Surface Mount	Solder	Brass	UL94 V-0	Square	-40 C	105 ░C	1.27 mm	0.05 in	Male Pin	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2	50 VAC	0.213 "	5.4 mm	Push-Pull	Header	Gold	Black	26	Flash	All	1 A

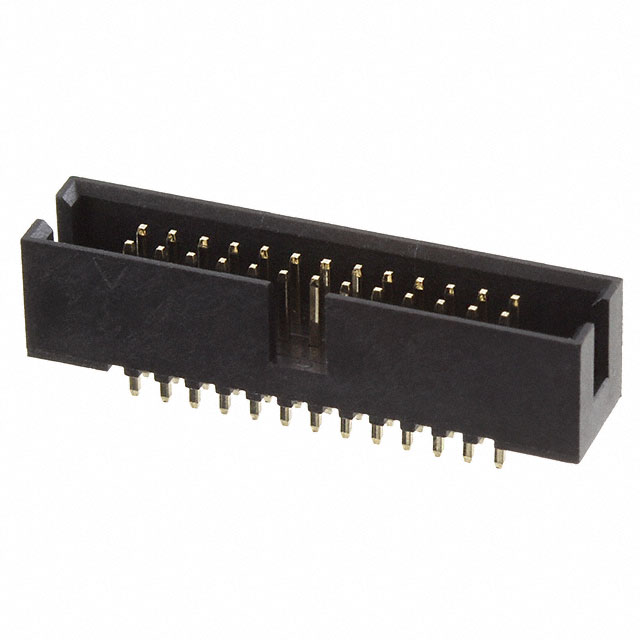

CNC Tech 3221-26-0100-00	Flash	Keying Slot	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Through Hole	Solder	Brass	UL94 V-0	Square	-40 C	105 ░C	1.27 mm	0.05 in	Male Pin	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2	50 VAC	0.213 "	5.4 mm	Push-Pull	Header	Gold	Black	26	Flash	All	1 A	0.083 in	2.11 mm
CNC Tech 3221-26-0200-00	Flash	Keying Slot	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Right Angle Through Hole	Solder	Brass	UL94 V-0	Square	-40 C	105 ░C	1.27 mm	0.05 in	Male Pin	0.05 in	1.27 mm	Gold	Shrouded - 4 Wall	2	50 VAC			Push-Pull	Header	Gold	Black	26	Flash	All	1 A	0.083 in	2.11 mm	0.201 in	5.1 mm
