2328702 Series

Catalog

CONNECTOR, FPC, R/A, 10POS, 1ROW, 0.5MM

Part	Cable End Type	Pitch [x]	Pitch [x]	Actuator Color	Material Flammability Rating	Contact Finish	Actuator Material	Number of Positions	Housing Color	Housing Material	Locking Feature	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination	Flat Flex Type	Voltage Rating	FFC, FCB Thickness	Current Rating (Amps)	Contact Material

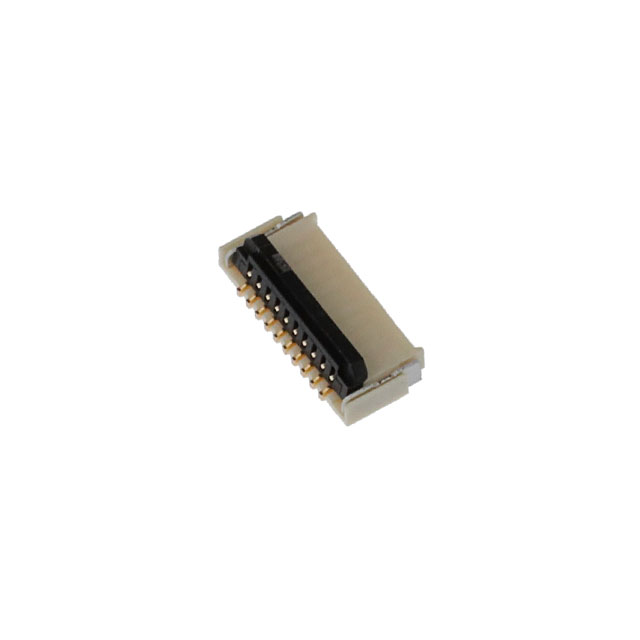

TE Connectivity Raychem Cable Protection 1-2328702-0	Tapered	0.5 mm	0.02 in	Black	UL94 V-0	Gold	Thermoplastic	10	Natural	Thermoplastic	Backlock Flip Lock	85 °C	-40 °C	Contacts Top and Bottom	3 Áin	0.076 Ám	Surface Mount Right Angle	Solder	FPC	50 V	0.3 mm	0.5 A	Copper Alloy

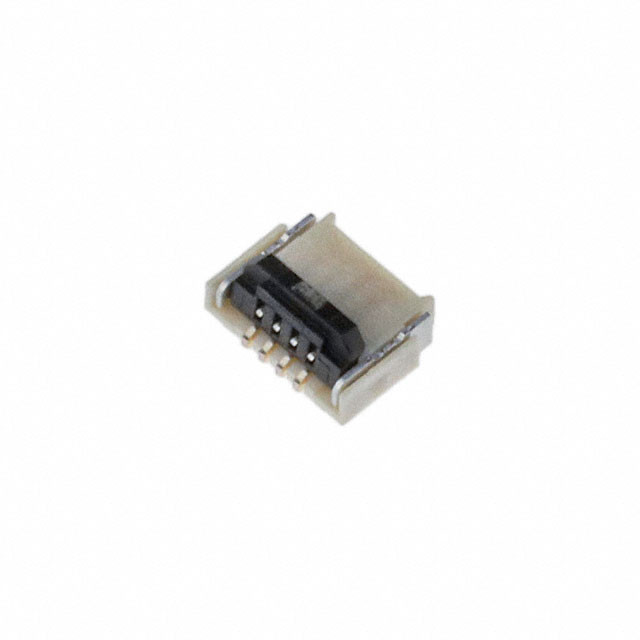

TE Connectivity Raychem Cable Protection 2328702-4	Tapered	0.5 mm	0.02 in	Black	UL94 V-0	Gold	Thermoplastic	4	Natural	Thermoplastic	Backlock Flip Lock	85 °C	-40 °C	Contacts Top and Bottom	3 Áin	0.076 Ám	Surface Mount Right Angle	Solder	FPC	50 V	0.3 mm	0.5 A	Copper Alloy
