ANT1818 Series
Manufacturer: Pulse Electronics
Beta
⌘K
RF ANT 1.6GHZ CER PATCH SOLDER
| Part | Antenna Type | Return Loss | Applications | Frequency (Center/Band) | Height (Max) | Termination | Number of Bands | RF Family/Standard | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | Gain | VSWR | Mounting Type | Frequency Range (Max) | Frequency Range (Min) | Frequency (Center) | Frequency (Band) | Return Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

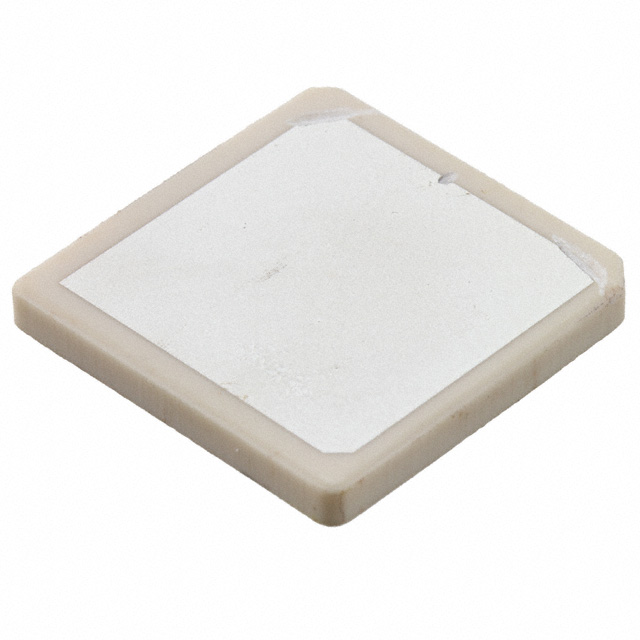

 Pulse Electronics | Ceramic Patch | -10 dB | GPS | 1.6 GHz | 0.079 in | Solder | 1 | Navigation | 1 GHz | UHF | 2 GHz | 2 dBic | 2 | Surface Mount | 1.583 GHz | 1.577 GHz | |||

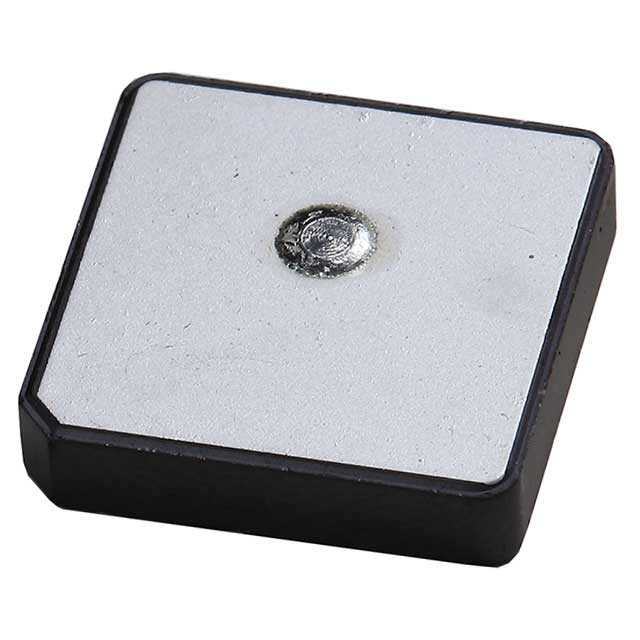

 Pulse Electronics | Ceramic Patch | -26.781 dB -26.08 dB | GLONASS GPS | 0.157 in | Pin | 2 | Navigation | 1 GHz | UHF | 2 GHz | 2.65 dBi 2.79 dBi | 2 | Adhesive | 1.606 GHz | 1.575 GHz | 1.575 GHz | 1.602 GHz | -26.080dB -26.781dB | |

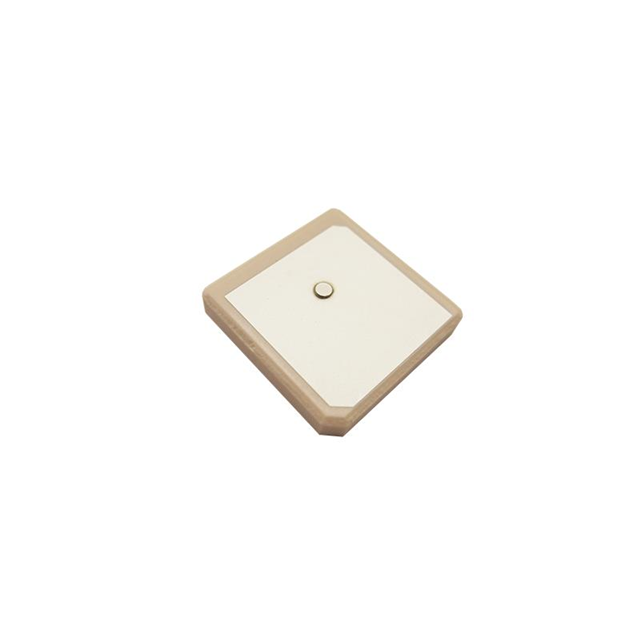

 Pulse Electronics | Ceramic Patch | 3 dB | GNSS | 1.5845 GHz | 0.157 in | Pin | 1 | Navigation | 1 GHz | UHF | 2 GHz | -2 dBic | Adhesive | 1.61 GHz | 1.559 GHz |
