PE1206F Series
Manufacturer: YAGEO
Beta
⌘K

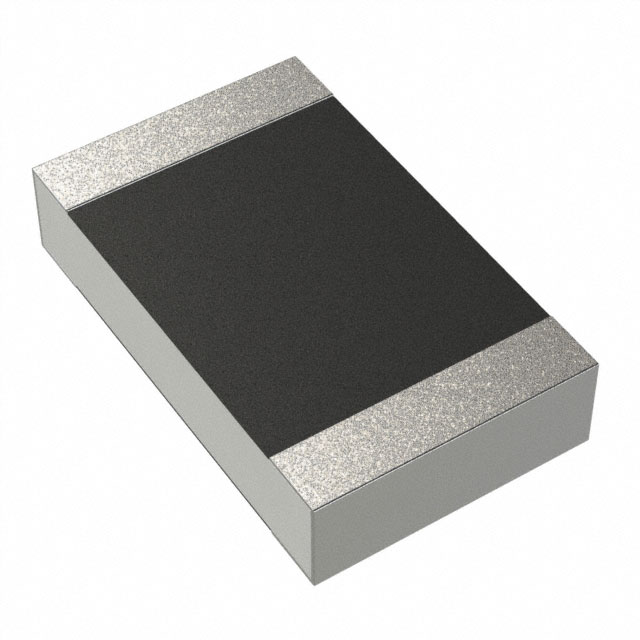

SMD CURRENT SENSE RESISTOR, 0.012 OHM, PE_L SERIES, 1206 [3216 METRIC], 500 MW, ± 1%, METAL FILM
| Part | Ratings | Tolerance | Power (Watts) | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Resistance | Composition | Supplier Device Package | Height - Seated (Max) [z] | Height - Seated (Max) [z] | Features | Number of Terminations [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | AEC-Q200 | 1 % | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 100 ppm/°C | 12 mOhms | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 | ||
 YAGEO | AEC-Q200 | 1 % | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 100 ppm/°C | 17 mOhms | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 | ||
YAGEO | AEC-Q200 | 1 % | 0.25 W | 0.25 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 100 ppm/°C | 0.18 Ohms | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 | ||
 YAGEO | AEC-Q200 | 1 % | 1 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 75 ppm/°C | 0.08 Ohms | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 | |||
YAGEO | 1 % | 0.25 W | 0.25 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 75 ppm/°C | 10 mOhms | 1206 | Current Sense | 2 | 0.033 in | 0.85 mm | ||||
YAGEO | AEC-Q200 | 1 % | 1 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 100 ppm/°C | 240 mOhms | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 | |||
YAGEO | AEC-Q200 | 1 % | 1 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 50 ppm/░C | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 | ||||
YAGEO | 1 % | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 75 ppm/°C | 12 mOhms | 1206 | Current Sense | 2 | 0.033 in | 0.85 mm | ||||
YAGEO | AEC-Q200 | 1 % | 0.25 W | 0.25 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 100 ppm/°C | 0.02 Ohms | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 | ||
YAGEO | AEC-Q200 | 1 % | 1 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 170 °C | -55 C | 75 ppm/°C | 0.1 Ohms | Metal Film | 1206 | 0.035 " | 0.89 mm | Automotive AEC-Q200 Current Sense | 2 |
