1744489 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN WIRE TO BOARD HDR 6 POS 3.96MM SOLDER ST TOP ENTRY THRU-HOLE BAG
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Mounting Type | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Rows | Number of Positions Loaded | Voltage Rating | Contact Shape | Contact Finish - Post | Overall Contact Length [x] | Overall Contact Length [x] | Insulation Color | Contact Material | Shrouding | Insulation Material | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Features | Material Flammability Rating | Style | Contact Type | Number of Positions | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | General Purpose Industrial Lighting | 120 µin | 3.05 µm | 0.127 in | 3.22 mm | Through Hole | Locking Ramp | 3.96 mm | 0.156 in | 1 | All | 250 VAC | Square | Tin | 14.6 mm | 0.575 in | Natural | Brass | Shrouded - 1 Wall | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 7.5 A | Glow Wire Compliant | UL94 V-0 | Board to Cable/Wire | Male Pin | 6 | Header | 105 ░C | -25 °C | Solder | 0.303 in | 7.7 mm |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | General Purpose Industrial Lighting | 120 µin | 3.05 µm | 0.127 in | 3.22 mm | Through Hole | Locking Ramp | 3.96 mm | 0.156 in | 1 | All | 250 VAC | Square | Tin | 14.6 mm | 0.575 in | Natural | Brass | Shrouded - 1 Wall | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 7.5 A | Glow Wire Compliant | UL94 V-0 | Board to Cable/Wire | Male Pin | 10 | Header | 105 ░C | -25 °C | Solder | 0.303 in | 7.7 mm |

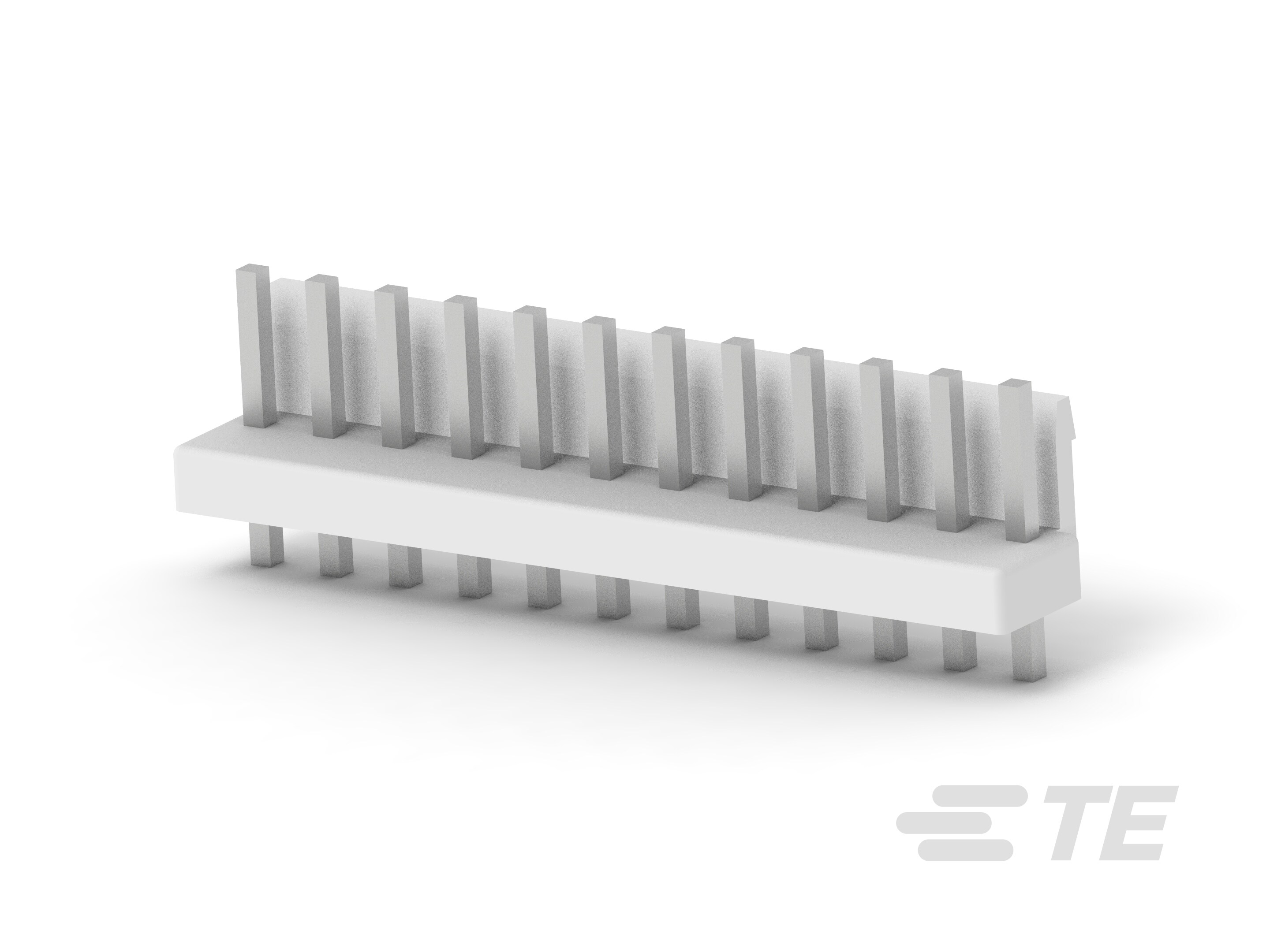

 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | General Purpose Industrial Lighting | 120 µin | 3.05 µm | 0.127 in | 3.22 mm | Through Hole | Locking Ramp | 3.96 mm | 0.156 in | 1 | All | 250 VAC | Square | Tin | 14.6 mm | 0.575 in | Natural | Brass | Shrouded - 1 Wall | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 7.5 A | Glow Wire Compliant | UL94 V-0 | Board to Cable/Wire | Male Pin | 12 | Header | 105 ░C | -25 °C | Solder | 0.303 in | 7.7 mm |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | General Purpose Industrial Lighting | 120 µin | 3.05 µm | 0.127 in | 3.22 mm | Through Hole | Locking Ramp | 3.96 mm | 0.156 in | 1 | All | 250 VAC | Square | Tin | 14.6 mm | 0.575 in | Natural | Brass | Shrouded - 1 Wall | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 7.5 A | Glow Wire Compliant | UL94 V-0 | Board to Cable/Wire | Male Pin | 11 | Header | 105 ░C | -25 °C | Solder | 0.303 in | 7.7 mm |

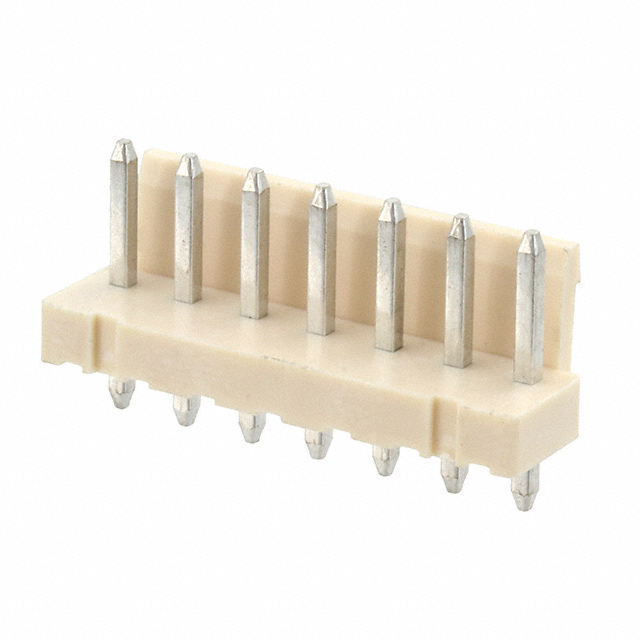

 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | General Purpose Industrial Lighting | 120 µin | 3.05 µm | 0.127 in | 3.22 mm | Through Hole | Locking Ramp | 3.96 mm | 0.156 in | 1 | All | 250 VAC | Square | Tin | 14.6 mm | 0.575 in | Natural | Brass | Shrouded - 1 Wall | Nylon Polyamide (PA) | 3.68 mm | 0.145 in | 7.5 A | Glow Wire Compliant | UL94 V-0 | Board to Cable/Wire | Male Pin | 7 | Header | 105 ░C | -25 °C | Solder | 0.303 in | 7.7 mm |
