TPS929120 Series
Manufacturer: Texas Instruments
Beta
⌘K

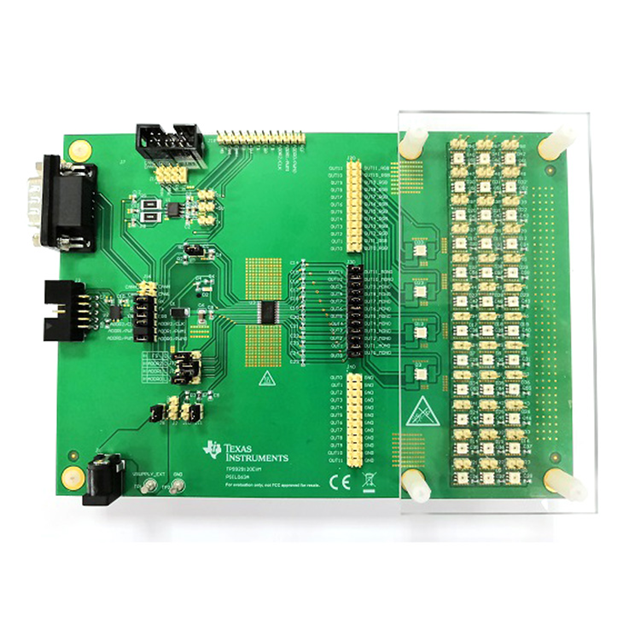

LED LIGHTING DEVELOPMENT TOOLS TPS929120EVM
| Part | Features | Utilized IC / Part | Contents | Voltage - Input [Max] | Voltage - Input [Min] | Outputs and Type | Current - Output / Channel | Internal Switch(s) | Dimming | Package / Case | Package / Case [custom] | Voltage - Supply (Max) [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Type | Qualification | Voltage - Output [Min] | Voltage - Output [Max] | Topology | Mounting Type | Voltage - Supply (Min) [Min] | Frequency [Min] | Frequency [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Dimmable | TPS929120-Q1 | Board Cable | 40 V | 4.5 V | 12 Non-Isolated Outputs | 75 mA | |||||||||||||||||||
 Texas Instruments | PWM | 24-PowerTSSOP | 0.173 in 4.4 mm | 40 V | 12 | 125 °C | -40 °C | Automotive | DC DC Regulator | AEC-Q100 | 4.75 V | 5.25 V | Step-Down (Buck) Step-Up (Boost) | Surface Mount | 4.5 V | 10 kHz | 2 MHz | 24-HTSSOP | ||||||||
Texas Instruments | Analog PWM | 24-PowerTSSOP | 0.173 in 4.4 mm | 40 V | 12 | 125 °C | -40 °C | Automotive | DC DC Regulator | AEC-Q100 | 4.75 V | 5.25 V | Step-Down (Buck) Step-Up (Boost) | Surface Mount | 4.5 V | 10 kHz | 1 MHz | 24-HTSSOP |
