2823450 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

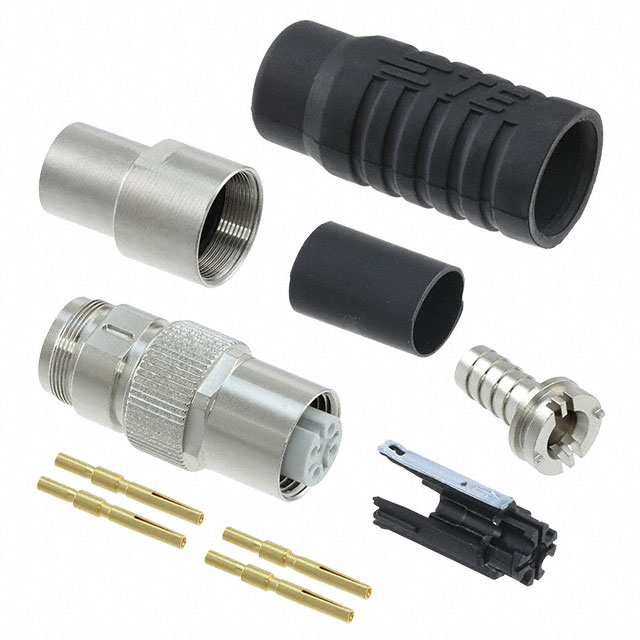

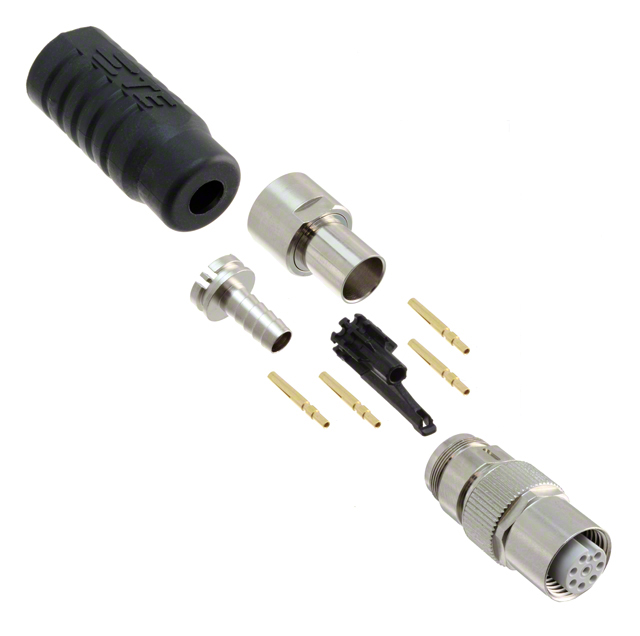

CONN RCPT FMALE 5POS GOLD CRIMP
| Part | Material Flammability Rating | Termination | Orientation | Contact Material | Color | Primary Material | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Ingress Protection | Shell Finish | Shell Material | Contact Finish - Mating | Connector Type | Current Rating (Amps) | Shell Size - Insert | Voltage Rating | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Crimp | A | Copper Alloy | Silver | Metal | Free Hanging (In-Line) | Backshell | 85 °C | -40 °C | Thermoplastic | IP67 - Dust Tight Waterproof | Nickel | Brass | Gold | Receptacle Female Sockets | 4 A | M12-5 | 50 V | Shielded | |
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Crimp | A | Copper Alloy | Silver | Metal | Free Hanging (In-Line) | Backshell | 85 °C | -40 °C | Thermoplastic | IP67 - Dust Tight Waterproof | Nickel | Brass | Gold | Receptacle Female Sockets | 2 A | M12-8 | 30 VDC | Shielded | 8 |
TE Connectivity Raychem Cable Protection | UL94 V-0 | Crimp | A | Copper Alloy | Silver | Metal | Free Hanging (In-Line) | Backshell | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Nickel | Copper Alloy | Gold | Receptacle Female Sockets | 4 A | M12-5 | 50 V 250 VAC | Shielded | ||
TE Connectivity Raychem Cable Protection | UL94 V-0 | Crimp | A | Copper Alloy | Silver | Metal | Free Hanging (In-Line) | Backshell | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Nickel | Copper Alloy | Gold | Receptacle Female Sockets | 4 A | M12-5 | 50 V 250 VAC | Shielded |
