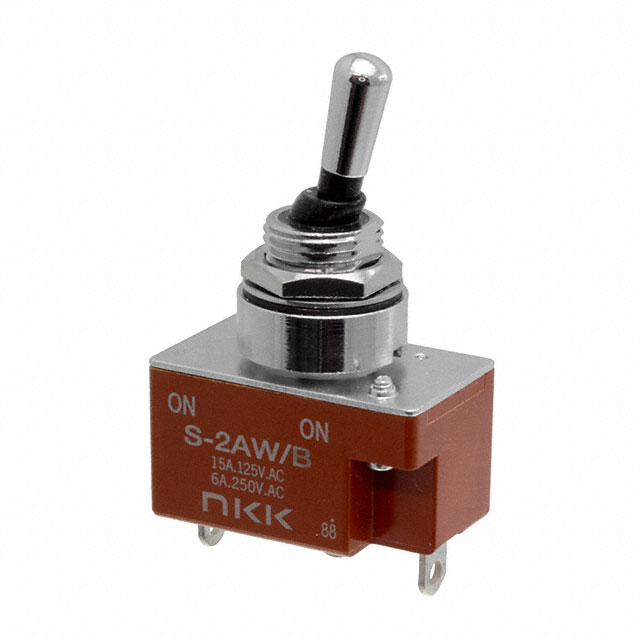

S2AW Series
Manufacturer: NKK Switches
Beta
⌘K
TOGGLE SWITCH, IP68, ON-NONE-ON, SPDT, NON ILLUMINATED, S SERIES, 20 A, PANEL MOUNT
| Part | Electrical Life | Circuit | Bushing Thread | Ingress Protection | Actuator Type | Features | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Termination Style | Panel Cutout Dimensions [diameter] | Illumination | Current Rating (Amps) | Switch Function | Mounting Type | Voltage Rating - AC | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | SPDT | M12 x 1 | IP68 - Dust Tight Waterproof | Standard Round | Waterproof Boot | 30 V | -30 ░C | 70 °C | 17.5 mm | Solder Lug | 12.5 mm | Non-Illuminated | 15 A 20 A | On-On | Panel Mount | 125 V | |
 NKK Switches | 25000 Steps | SPDT | M12 x 1 | IP67 - Dust Tight Waterproof | Standard Round | 30 V | -30 ░C | 70 °C | 17.5 mm | Wire Leads | 12.5 mm | Non-Illuminated | 15 A 20 A | On-On | Panel Mount | 125 V | Brass Chrome Plated |
