C4BSYB Series
Manufacturer: KEMET
Beta
⌘K

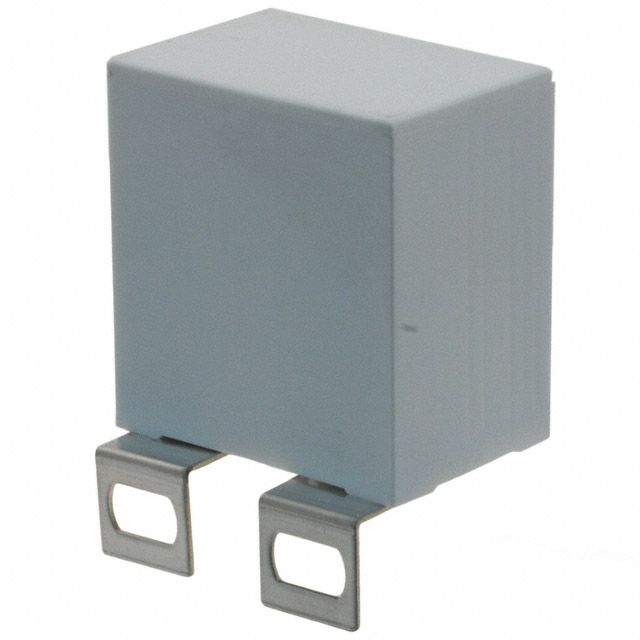

CAP FILM 0.33UF 5% 3KVDC SCREW
| Part | Package / Case | Voltage Rating - DC | Voltage Rating - DC | Capacitance | ESR (Equivalent Series Resistance) | Tolerance | Voltage Rating - AC | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Dielectric Material | Termination | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Lead Spacing | Lead Spacing | Applications | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Rectangular Box | 3 kV | 3000 V | 0.33 µF | 5.4 mOhm | 5 % | 750 V | 1.772 " | 45 mm | Polypropylene (PP) Metallized | Screw Terminals | 1.181 in | 30 mm | 42 mm | 1.654 in | Chassis Mount | 25.5 mm | 1.004 in | DC Filtering DC Link Snubber | 85 °C | -40 C |
 KEMET | Rectangular Box | 3 kV | 3000 V | 0.47 µF | 7.5 mOhm | 5 % | 750 V | 1.772 " | 45 mm | Polypropylene (PP) Metallized | Screw Terminals | 1.181 in | 30 mm | 57.5 mm | 2.264 in | Chassis Mount | 37 mm | 1.457 " | DC Filtering DC Link Snubber | 85 °C | -40 C |
