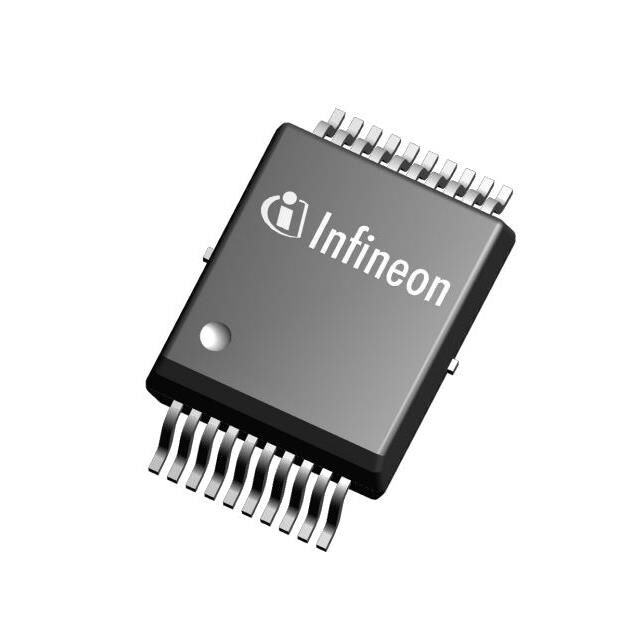

1EDI3023 Series

Manufacturer: INFINEON

Catalog

GATE DRIVER, IGBT, HIGH SIDE, PG-DSO-20 ROHS COMPLIANT: YES

Part	Common Mode Transient Immunity (Min) [Min]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Qualification	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Rise / Fall Time (Typ)	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Package / Case	Pulse Width Distortion (Max) [Max]	Grade	Number of Channels [custom]	Current - Peak Output	Approval Agency	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Mounting Type	Supplier Device Package
INFINEON 1EDI3023ASXUMA1	150 kV/µs	3 V	5.5 V	AEC-Q100	120 ns	120 ns	45 ns 55 ns	Magnetic Coupling	-40 C	150 °C	5700 Vrms	20-BFSOP (0.295" 7.50mm Width)	20 ns	Automotive	1	12 A	UL VDE	12 A	12 A	Surface Mount	PG-DSO-20-91
