SW3006 Series

Catalog

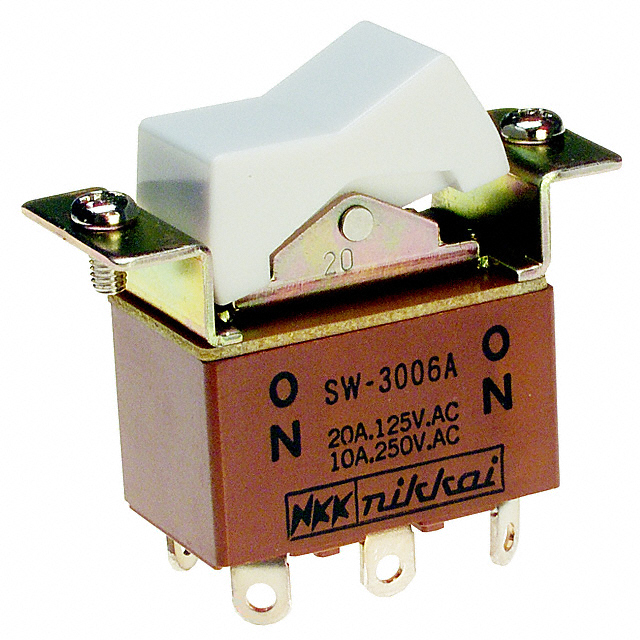

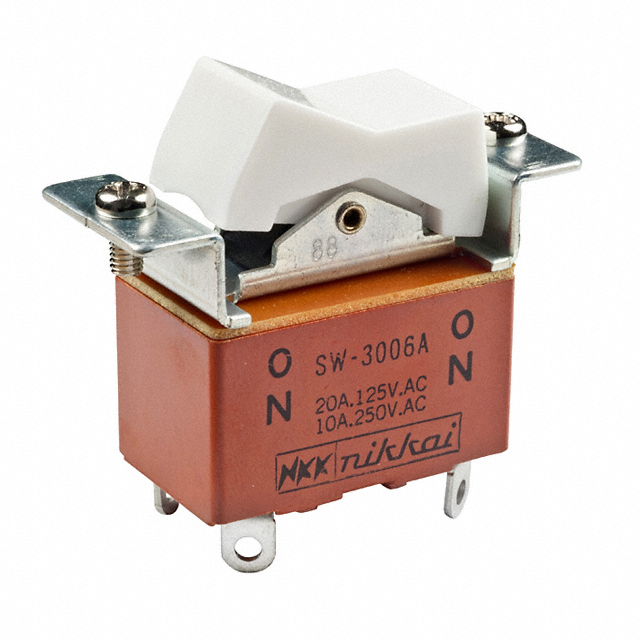

ROCKER SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Approval Agency	Color - Actuator/Cap	Circuit	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Actuator Marking	Switch Function	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
NKK Switches SW3006A	10000 Cycles	30000 Steps	20 A	CSA UL	White	DPDT	30 V	125 V	Flange Panel Mount	No Marking	On-On	Solder Lug	Concave	70 °C	-10 °C	Dust Proof
NKK Switches SW3006A/UCV	10000 Cycles	30000 Steps	20 A	CSA UL	White	DPDT	30 V	125 V	Flange Panel Mount	No Marking	On-On	Solder Lug	Concave	70 °C	-10 °C	Dust Proof
NKK Switches SW3006A/U	10000 Cycles	30000 Steps	20 A	CSA UL	White	DPDT	30 V	125 V	Flange Panel Mount	No Marking	On-On	Solder Lug	Concave	70 °C	-10 °C	Dust Proof
