UTP61 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG HSNG MALE 4POS INLINE

Part	Mounting Type	Connector Type	Number of Positions	Shielding	Fastening Type	Material Flammability Rating	Shell Size - Insert Width	Shell Size - Insert Length	Contact Size	Orientation	Type	Shell Material	Contact Shape	Features	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Note	Housing Color	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Position Types

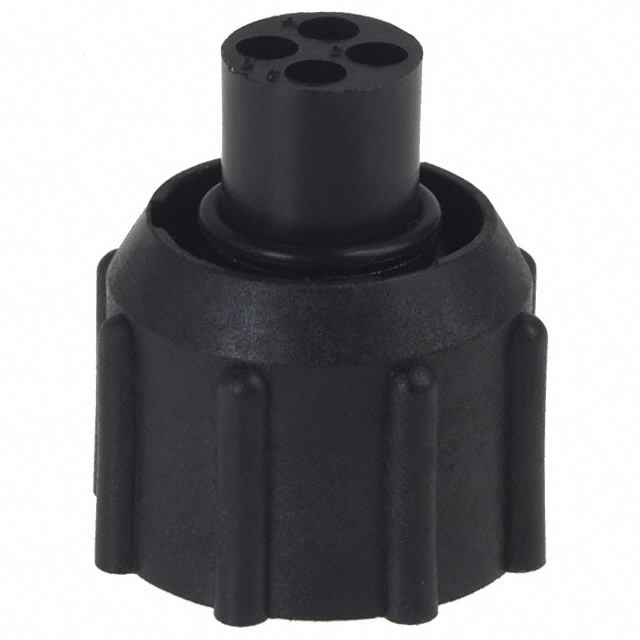

Amphenol Aerospace Operations UTP6104P	Free Hanging (In-Line)	Plug Housing	4	Unshielded	Bayonet Lock	UL94 V-0	4 mm	10 mm	16 S	N (Normal)	For Male Pins	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black

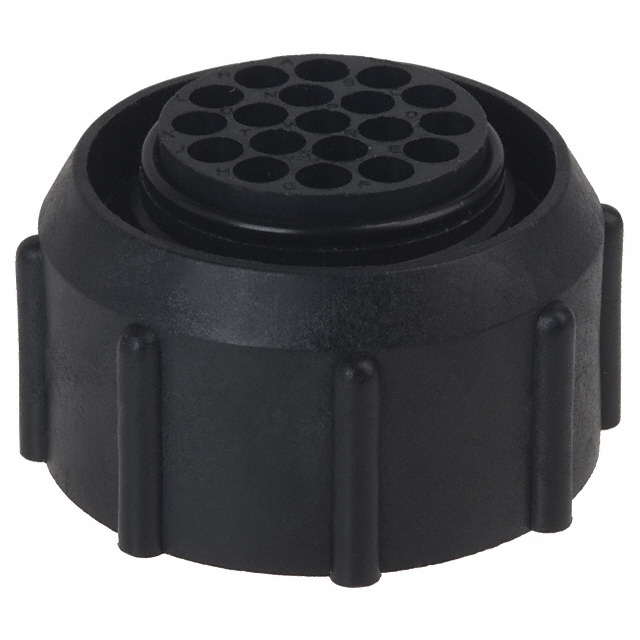

Amphenol Aerospace Operations UTP61619S	Free Hanging (In-Line)	Plug Housing	19	Unshielded	Bayonet Lock	UL94 V-0			16 S	N (Normal)	For Female Sockets	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black	19	16 S

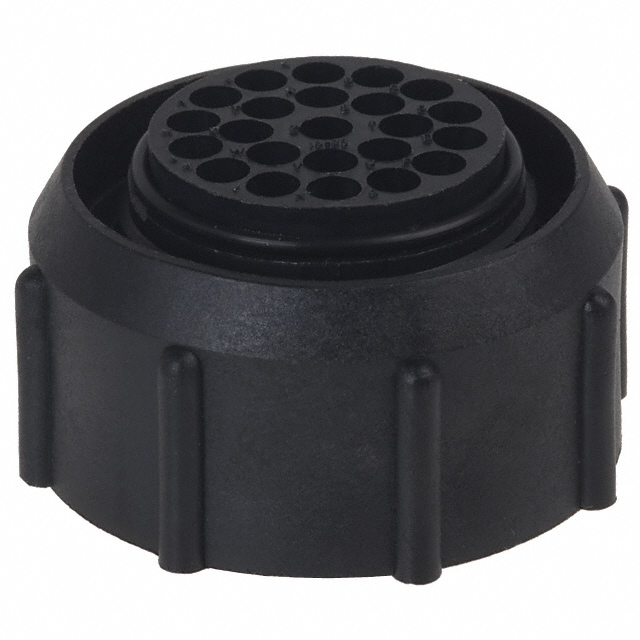

Amphenol Aerospace Operations UTP61823S	Free Hanging (In-Line)	Plug Housing	23	Unshielded	Bayonet Lock	UL94 V-0			16 S	N (Normal)	For Female Sockets	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black	23	18

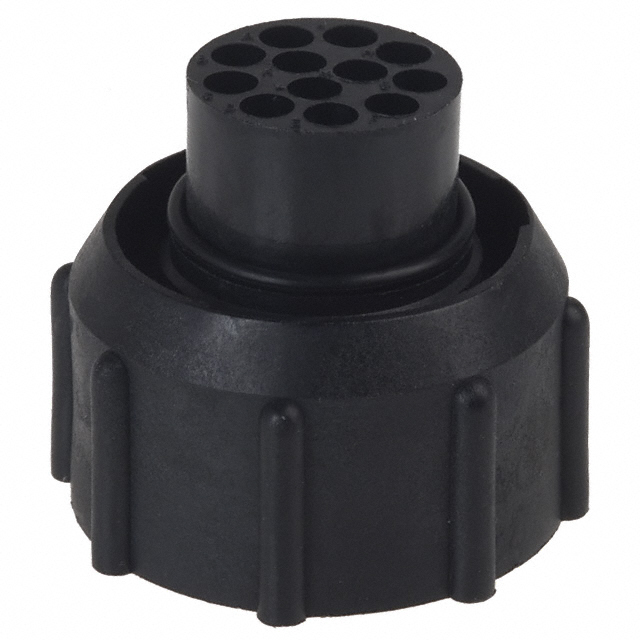

Amphenol Aerospace Operations UTP61412P	Free Hanging (In-Line)	Plug Housing	12	Unshielded	Bayonet Lock	UL94 V-0	12 mm	14 mm	16 S	N (Normal)	For Male Pins	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black

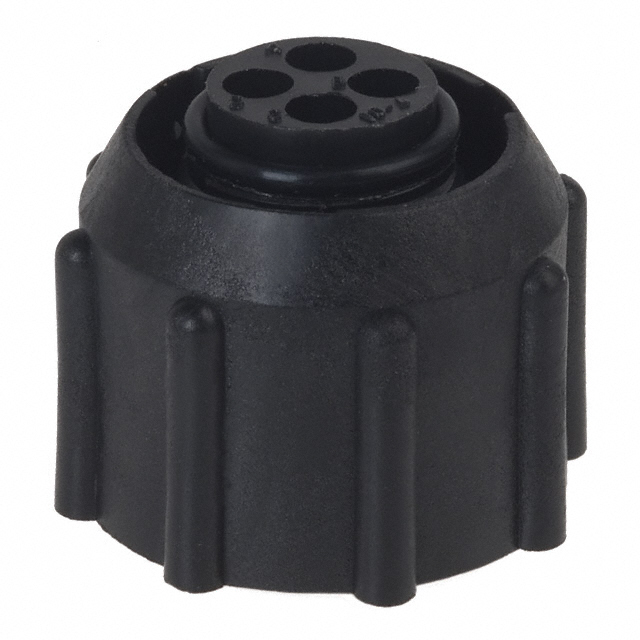

Amphenol Aerospace Operations UTP6104S	Free Hanging (In-Line)	Plug Housing	4	Unshielded	Bayonet Lock	UL94 V-0	4 mm	10 mm	16 S	N (Normal)	For Female Sockets	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black

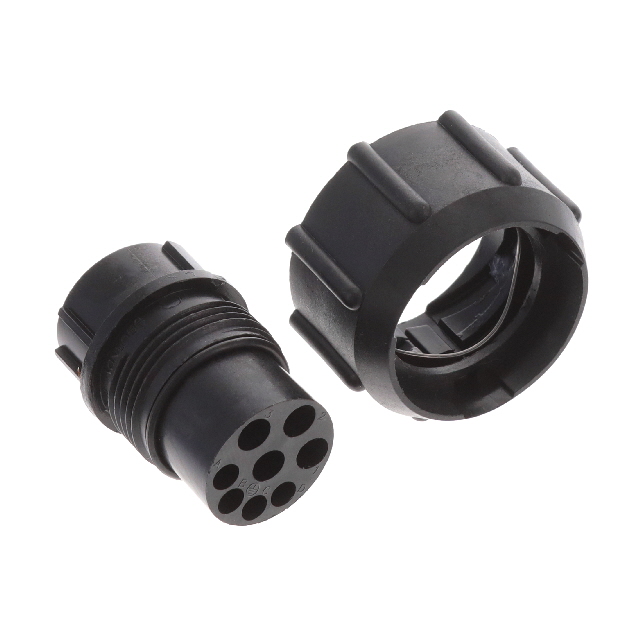

Amphenol Aerospace Operations UTP6148P	Free Hanging (In-Line)	Plug Housing	8	Unshielded	Bayonet Lock	UL94 V-0	8 mm	14 mm	12 16	N (Normal)	For Male Pins	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black			PE

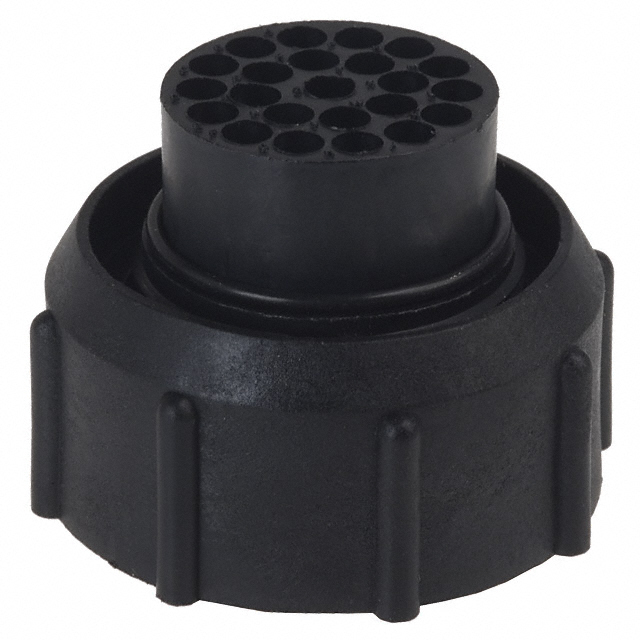

Amphenol Aerospace Operations UTP61823P	Free Hanging (In-Line)	Plug Housing	23	Unshielded	Bayonet Lock	UL94 V-0			16 S	N (Normal)	For Male Pins	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black	23	18
Amphenol Aerospace Operations UTP6148S	Free Hanging (In-Line)	Plug Housing	8	Unshielded	Bayonet Lock	UL94 V-0	8 mm	14 mm	12 16	N (Normal)	For Female Sockets	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black			PE
Amphenol Aerospace Operations UTP6128S	Free Hanging (In-Line)	Plug Housing	8	Unshielded	Bayonet Lock	UL94 V-0	8 mm	12 mm	16 S	N (Normal)	For Female Sockets	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black

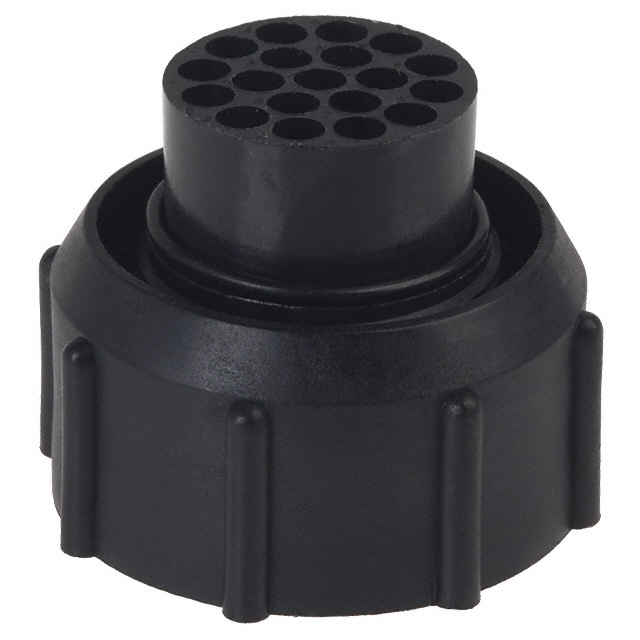

Amphenol Aerospace Operations UTP61619P	Free Hanging (In-Line)	Plug Housing	19	Unshielded	Bayonet Lock	UL94 V-0			16 S	N (Normal)	For Male Pins	Glass Filled Polyester	Circular	Coupling Nut	Crimp	125 °C	-25 °C	Contacts Not Included	Black	19	16 S
