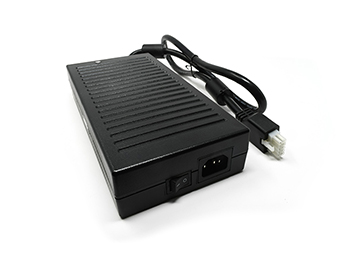

PPWAMD300 Series
Industrial and Medical Desktop Power Supply 48V 300 Watt
Manufacturer: TT Electronics/BI
Catalog
Industrial and Medical Desktop Power Supply 48V 300 Watt
Beta
⌘K
Industrial and Medical Desktop Power Supply 48V 300 Watt
Industrial and Medical Desktop Power Supply 48V 300 Watt
Industrial and Medical Desktop Power Supply 48V 300 Watt
| Part | Form | Power (Watts) | Approval Agency | No Load Power Consumption | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Region Utilized | Output Connector | Output Connector | Current - Output (Max) [Max] | Voltage - Output | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Cord Length | Cord Length | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | Desktop (Class I) | 300 W | CB CE cULus cURus FCC TUV | 500 mW | Level VI | 264 VAC | 90 VAC | IEC 320-C14 | International | Rectangular | 10 Pin | 25 A | 12 V | 60601-1 | -30 ░C | 60 °C | Medical | 31.5 in | 0.8 m | 45 mm | 222 mm | 8.74 in | 111.8 mm | 4.4 " | 1.77 in | Cord (Sold Separately) |
