ABJ151 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Electrical Life	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Voltage Rating - DC	Mechanical Life	Current Rating (Amps)	Termination Style	Pretravel	Pretravel	Voltage Rating - AC	Ingress Protection	Switch Function	Circuit	Actuator Type	Operating Force	Mounting Type	Differential Travel	Differential Travel	Overtravel [custom]	Overtravel [custom]	Differential Travel
Panasonic Electronic Components ABJ151241	100000 Cycles	0.268 in	6.8 mm	85 °C	-40 C	3.059 gf	30 V	1000000 Cycles	100 mA	PC Pin	0.12 in	3 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Lever Straight	40 gf	Through Hole	0.5 mm	0.02 in	0.5 mm	0.02 "
Panasonic Electronic Components ABJ1512619	6000 Cycles	0.268 in	6.8 mm	85 °C	-40 C	5.099 gf	30 V	1000000 Cycles	100 mA	PC Pin	0.12 in	3 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Lever Straight	65 gf	Through Hole	0.5 mm	0.02 in	0.5 mm	0.02 "

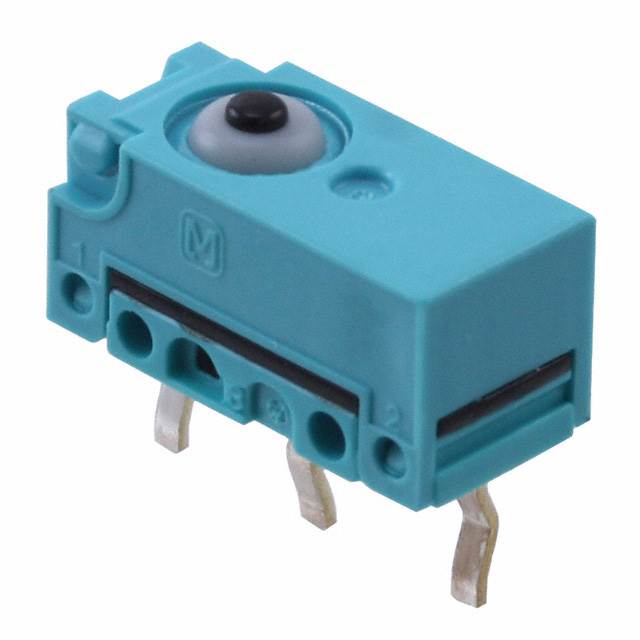

Panasonic Electronic Components ABJ151060	30000 Cycles	0.217 in	5.5 mm	85 °C	-40 C	25 gf	30 V	1000000 Cycles	2 A	PC Pin	0.024 in	0.6 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Round (Pin Plunger)	0.2 kgf	Through Hole	0.005 in		0.25 mm	0.01 "	0.13 mm

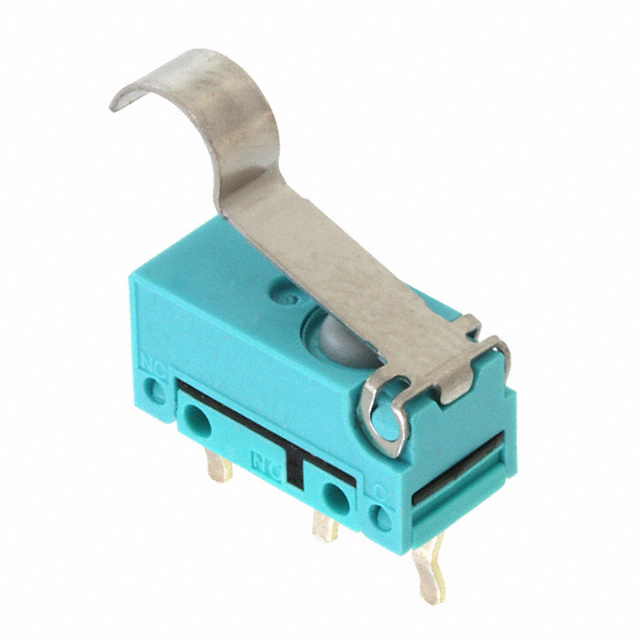

Panasonic Electronic Components ABJ151441	100000 Cycles	0.386 in	9.8 mm	85 °C	-40 C	3.059 gf	30 V	1000000 Cycles	100 mA	PC Pin	0.12 in	3 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Lever Simulated Roller	40 gf	Through Hole	0.5 mm	0.02 in	0.5 mm	0.02 "
Panasonic Electronic Components ABJ1510409	6000 Cycles	0.217 in	5.5 mm	85 °C	-40 C	15 gf	30 V	1000000 Cycles	1 A	PC Pin	0.024 in	0.6 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Round (Pin Plunger)	125 gf	Through Hole	0.005 in		0.25 mm	0.01 "	0.13 mm
Panasonic Electronic Components ABJ1514609

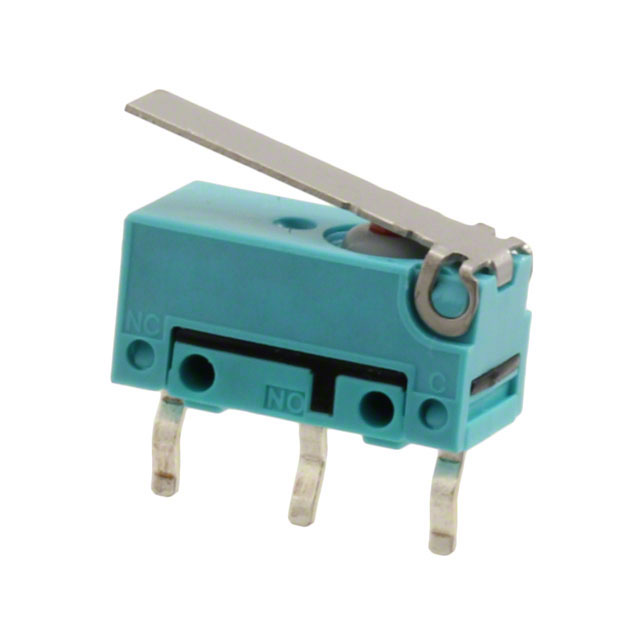

Panasonic Electronic Components ABJ1512419	6000 Cycles	0.268 in	6.8 mm	85 °C	-40 C	3.059 gf	30 V	1000000 Cycles	100 mA	PC Pin	0.12 in	3 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Lever Straight	40 gf	Through Hole	0.5 mm	0.02 in	0.5 mm	0.02 "
Panasonic Electronic Components ABJ1516419	6000 Cycles	0.516 in	13.1 mm	85 °C	-40 C	3.059 gf	30 V	1000000 Cycles	100 mA	PC Pin	0.12 in	3 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Lever Roller	40 gf	Through Hole	0.5 mm	0.02 in	0.5 mm	0.02 "
Panasonic Electronic Components ABJ151460	30000 Cycles	0.386 in	9.8 mm	85 °C	-40 C	5.099 gf	30 V	1000000 Cycles	2 A	PC Pin	0.12 in	3 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Lever Simulated Roller	65 gf	Through Hole	0.5 mm	0.02 in	0.5 mm	0.02 "
Panasonic Electronic Components ABJ1512609	6000 Cycles	0.268 in	6.8 mm	85 °C	-40 C	5.099 gf	30 V	1000000 Cycles	2 A	PC Pin	0.12 in	3 mm	125 V	IP50 - Dust Protected	On-Mom	SPDT	Lever Straight	65 gf	Through Hole	0.5 mm	0.02 in	0.5 mm	0.02 "
