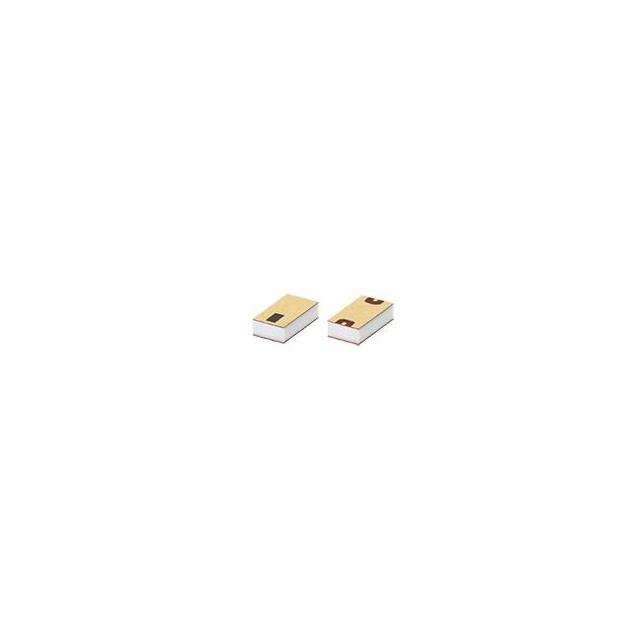

HFCN Series
Manufacturer: Mini-Circuits
Beta
⌘K
SIGNAL CONDITIONING HI PASS FLTR / SURF MT / ROHS
| Part | Mounting Type | Impedance | Height (Max) [z] | Height (Max) [z] | Package / Case | Filter Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Frequency | Bandwidth | Package / Case | Insertion Loss | Height (Max) [Max] [z] | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | Surface Mount | 50 Ohms | 1.07 mm | 0.042 in | 6-SMD No Lead | High Pass | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 9.45 GHz | |||||
 Mini-Circuits | Surface Mount | 1.1 mm | 1206 (3216 Metric) | High Pass | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 41 MHz | 32 MHz | 3 mm Width | 3.6 dB | 0.043 in | |||
 Mini-Circuits | Surface Mount | 50 Ohms | 4-SMD No Lead | High Pass | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 3.6 GHz | 3.2 GHz | 0.037 in | 0.94 mm |
