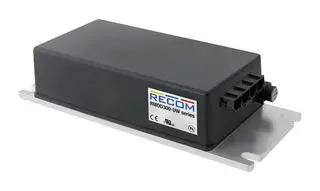

rmod300-uw Series

Catalog

ISOLATED CHASSIS MOUNT DC/DC CONVERTER, MINI-FIT CONN/CTRL, ITE, MODULE, 300 W, 1 OUTPUT, 24.5 VDC

Part	Voltage - Isolation	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Input (Min) [Min]	Efficiency	Standard Number	Size / Dimension	Size / Dimension	Size / Dimension	Approval Agency	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Voltage - Output 1
Recom Power RMOD300-80-24.5SUW/CTRL/MO	2250 VDC	106 V	Chassis Mount	Enclosed	18 V	91 %	62368-1	2.99 in 75.9 mm	7.48 in 190 mm	1.73 in 43.9 mm	CE cURus UKCA	12.5 A	306 W	75 °C	-40 °C	ITE (Commercial)	1	24.5 V
Recom Power RMOD300-80-12.2SUW/CTRL/MO	2250 VDC	106 V	Chassis Mount	Enclosed	18 V	88 %	62368-1	2.99 in 75.9 mm	7.48 in 190 mm	1.73 in 43.9 mm	CE cURus UKCA	24 A	293 W	75 °C	-40 °C	ITE (Commercial)	1	12.2 V
Recom Power RMOD300-80-12.2SUW/MO	2250 VDC	106 V	Chassis Mount	Enclosed	18 V	88 %	62368-1	2.99 in 75.9 mm	7.48 in 190 mm	1.73 in 43.9 mm	CE cURus UKCA	24 A	293 W	75 °C	-40 °C	ITE (Commercial)	1	12.2 V
Recom Power RMOD300-80-12.2SUW/F/MO	2250 VDC	106 V	Chassis Mount	Enclosed	18 V	88 %	62368-1	2.99 in 75.9 mm	7.48 in 190 mm	1.73 in 43.9 mm	CE cURus UKCA	24 A	293 W	75 °C	-40 °C	ITE (Commercial)	1	12.2 V
