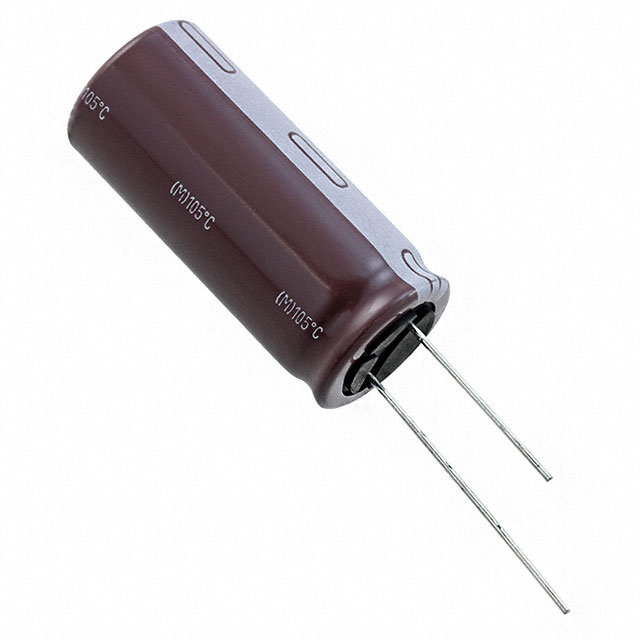

KZN Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED

Part	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Capacitance	Ripple Current @ High Frequency	Voltage - Rated	Tolerance	Polarization	Mounting Type	Ripple Current @ Low Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKZN800ELL221MK16S	General Purpose	0.197 "	5 mm	17.5 mm	0.689 in	Can Radial	220 µF	1.43 A	80 V	20 %	Polar	Through Hole	715 mA	10000 Hrs	0.492 in	12.5 mm	-40 C	105 ░C

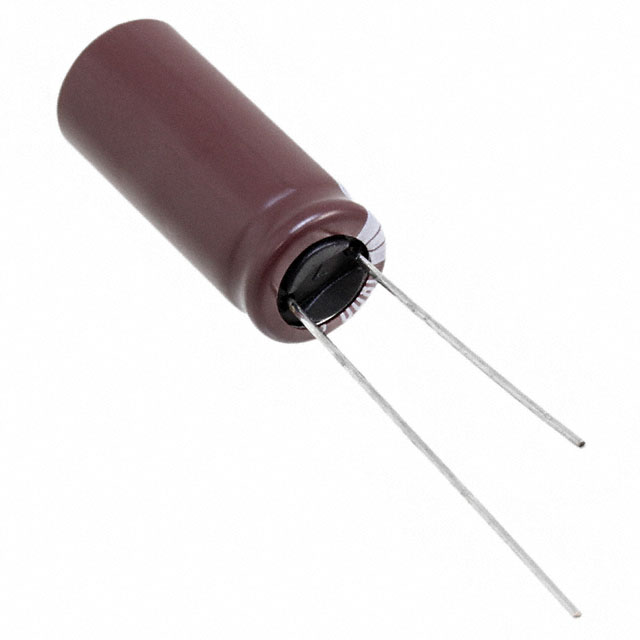

Chemi-Con EKZN100ELL222MJ25S	General Purpose	0.197 "	5 mm		26.5 mm	Can Radial	2200 µF	2.9 A	10 V	20 %	Polar	Through Hole	2.175 A	10000 Hrs	0.394 in	10 mm	-40 C	105 ░C	1.043 in	26 mOhms
Chemi-Con EKZN6R3ELL183ML40S	General Purpose	0.295 in	7.5 mm			Can Radial	18000 µF	4.58 A	6.3 VDC	20 %	Polar	Through Hole	3.893 A	10000 Hrs	0.63 in	16 mm	-40 C	105 ░C		13 mOhms	1.634 in	41.5 mm

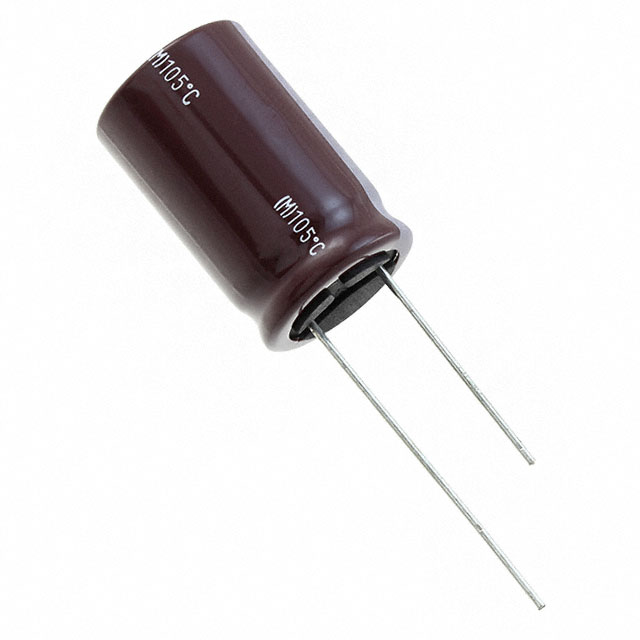

Chemi-Con EKZN500ELL122ML25S	General Purpose	0.295 in	7.5 mm		26.5 mm	Can Radial	1.2 mF	3.51 A	50 VDC	20 %	Polar	Through Hole		10000 Hrs	0.63 in	16 mm	-40 C	105 ░C	1.043 in	22 mOhms

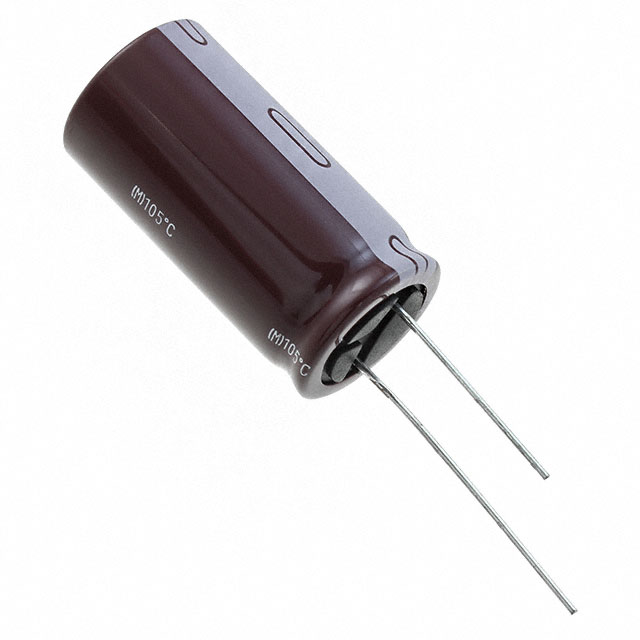

Chemi-Con EKZN630ELL681ML20S	General Purpose	0.295 in	7.5 mm			Can Radial	680 µF	2.38 A	63 V	20 %	Polar	Through Hole	1.428 A	10000 Hrs	0.63 in	16 mm	-40 C	105 ░C		27 mOhms	0.846 "		21.5 mm
Chemi-Con EKZN100ELL682ML25S	General Purpose	0.295 in	7.5 mm		26.5 mm	Can Radial	6800 µF	3.81 A	10 V	20 %	Polar	Through Hole	3.2385 A	10000 Hrs	0.63 in	16 mm	-40 C	105 ░C	1.043 in	17 mOhms
Chemi-Con EKZN250ELL682ML40S	General Purpose	0.295 in	7.5 mm			Can Radial	6800 µF	4.58 A	25 VDC	20 %	Polar	Through Hole	3.893 A	10000 Hrs	0.63 in	16 mm	-40 C	105 ░C		13 mOhms	1.634 in	41.5 mm
Chemi-Con EKZN800ELL270MF11D	General Purpose	0.098 in	2.5 mm			Can Radial	27 µF	390 mA	80 V	20 %	Polar	Through Hole	156 mA	6000 Hrs	0.248 "	6.3 mm	-40 C	105 ░C		0.34 Ohms			0.492 in	12.5 mm
Chemi-Con EKZN800ELL152MMP1S	General Purpose	0.295 in	7.5 mm			Can Radial	1.5 mF	3.71 A	80 V	20 %	Polar	Through Hole	2.226 A	10000 Hrs	0.709 in	18 mm	-40 C	105 ░C	1.457 in	18 mOhms		37 mm
Chemi-Con EKZN101ELL391MK35S	General Purpose	0.197 "	5 mm		36.5 mm	Can Radial	390 µF	2.86 A	100 V	20 %	Polar	Through Hole	1.43 A	10000 Hrs	0.492 in	12.5 mm	-40 C	105 ░C	1.437 "	26 mOhms
