RSF150 Series

Catalog

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Voltage Rating	Output Configuration	Output Type	Minimum Liquid Specific Gravity [Min]	Current	Mounting Type	Material - Housing & Prism	Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Actuation Level	Switch Actuation Level

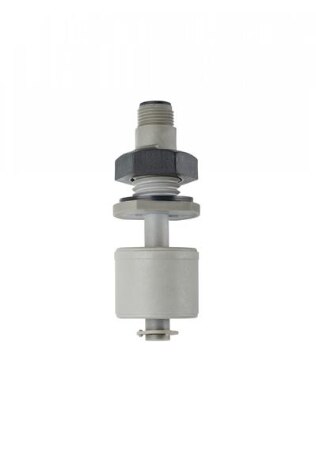

Sensata-Crydom RSF156HFP	300 VDC 300 VAC	SPST-NO	Switch (Single Float)	0.85	1 A	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	Liquid	-10 °C	105 ░C

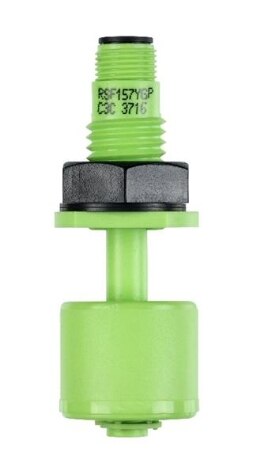

Sensata-Crydom RSF157HGP	300 VDC 300 VAC	SPST-NC/NO	Switch (Single Float)	0.85	1 A	M16x2 Thread Panel Mount	Polyvinylidene Fluoride (PVDF)	Liquid	-10 °C	105 ░C
Sensata-Crydom RSF156YFP	120 VDC 240 VAC	SPST-NO	Switch (Single Float)	0.85	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	Liquid	-10 °C	105 ░C

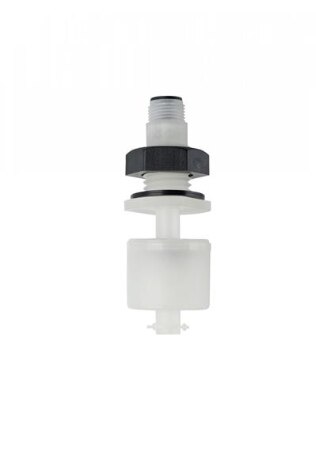

Sensata-Crydom RSF154HFP	120 VDC 240 VAC	SPST-NO	Switch (Single Float)	0.65	1 A	M16x2 Thread Panel Mount	Polypropylene (PP)	Liquid	-20 ░C	100 °C
Sensata-Crydom RSF158YFP	120 VDC 240 VAC	SPST-NO	Switch (Single Float)	0.65	600 mA	M16x2 Thread Panel Mount	Polypropylene (PP)	Liquid	-20 ░C	100 °C
Sensata-Crydom RSF157YGP	120 VDC 240 VAC	SPST-NC/NO	Switch (Single Float)	0.85	600 mA	M16x2 Thread Panel Mount	Polyvinylidene Fluoride (PVDF)	Liquid	-10 °C	105 ░C
Sensata-Crydom RSF153HFP	300 VDC 300 VAC	SPST-NO	Switch (Single Float)	0.8	1 A	M16x2 Thread Panel Mount	Nylon	Liquid			0.886 "	22.5 mm
Sensata-Crydom RSF157YFP	120 VDC 240 VAC	SPST-NC/NO	Switch (Single Float)	0.85	600 mA	M16x2 Thread Panel Mount	Polyvinylidene Fluoride (PVDF)	Liquid	-10 °C	105 ░C

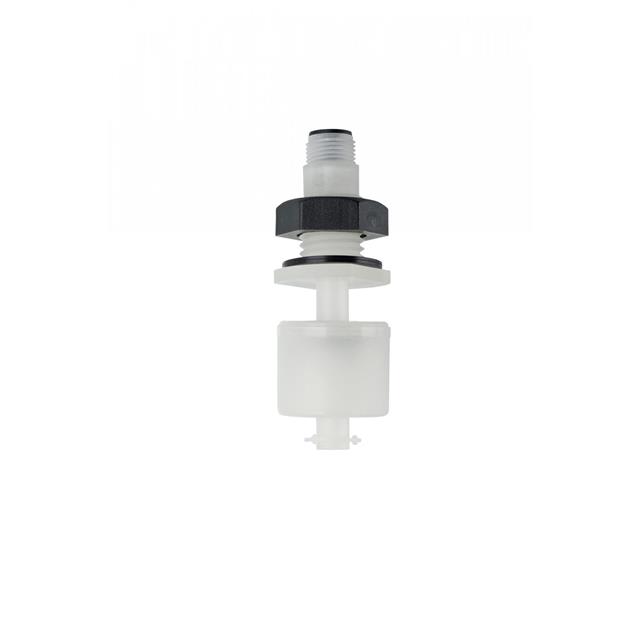

Sensata-Crydom RSF154YFP	120 VDC 240 VAC	SPST-NO	Switch (Single Float)	0.65	600 mA	M16x2 Thread Panel Mount	Polypropylene (PP)	Liquid	-20 ░C	100 °C
Sensata-Crydom RSF158HFP	300 VDC 300 VAC	SPST-NO	Switch (Single Float)	0.65	1 A	M16x2 Thread Panel Mount	Polypropylene (PP)	Liquid	-20 ░C	100 °C
