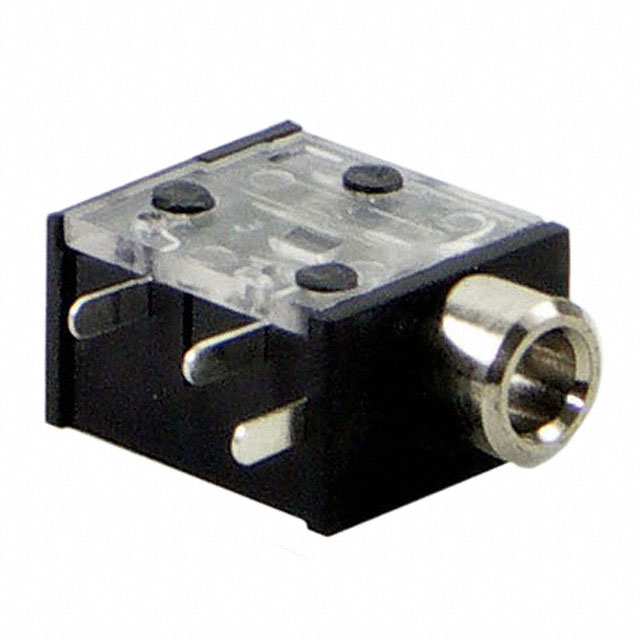

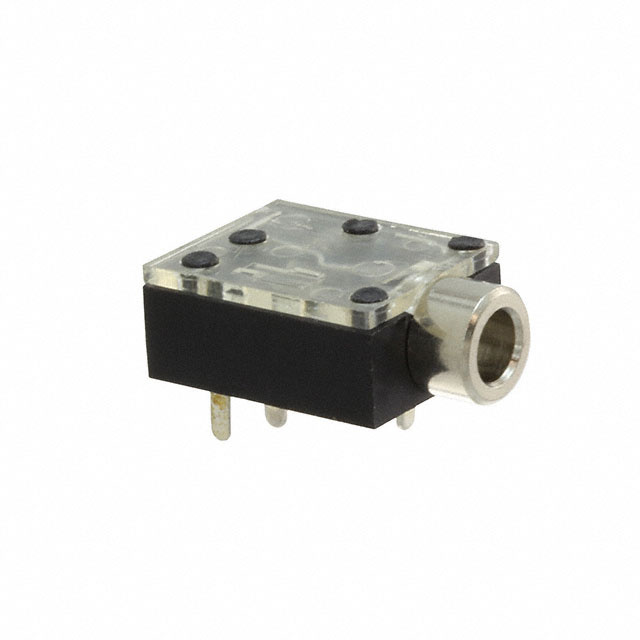

35RAPC Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
PHONE AUDIO CONNECTOR, JACK, 5 CONTACTS, JACK, PCB MOUNT, SILVER PLATED CONTACTS
| Part | Housing Material | Contact Material | Body Color | Contact Material - Plating | Body Material | Shielding | Actual Diameter [diameter] | Actual Diameter [diameter] | Signal Lines | Gender | Termination | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Connector Type | Internal Switch(s) | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Includes | Thread Size | Features | Internal Switch(s) | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Two Switches | Right Angle Through Hole | 5 | 3 | |||||
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Mono | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Single Switch | Panel Mount Right Angle Through Hole | 3 | 2 | 1 Nut 1 Washer 3 pcs - 1 Connector | M6 | Mounting Hardware Thread Lock | ||
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Mono | Female | Solder Eyelet(s) | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Single Switch | Right Angle Through Hole | 3 | 2 | Thread Lock | ||||
SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Right Angle Through Hole | 3 | 3 | ||||||
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Right Angle Through Hole | 3 | 3 | ||||||
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Right Angle Through Hole | 3 | 3 | ||||||
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Single Switch | Panel Mount Right Angle Through Hole | 4 | 3 | 1 Nut 1 Washer 3 pcs - 1 Connector | Mounting Hardware Thread Lock | |||
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Two Switches | Panel Mount Right Angle Through Hole | 5 | 3 | 1 Nut 1 Washer 3 pcs - 1 Connector | Mounting Hardware Thread Lock | |||
 SWITCHCRAFT/CONXALL | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black Silver | Silver | Brass | Unshielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | Panel Mount Right Angle Through Hole | 3 | 3 | 1 Connector 1 Nut | Mounting Hardware Thread Lock | ||||
 SWITCHCRAFT/CONXALL | Liquid Crystal Polymer (LCP) | Copper Alloy | Black Silver | Silver | Copper Alloy | Shielded | 0.142 in | 3.6 mm | Stereo (3 Conductor TRS) | Female | Solder | 0.125 in | 3.5 mm | 0.141 in | Phone Jack Dual | Two Switches | Right Angle Through Hole | 2 sets 8 Positions |
