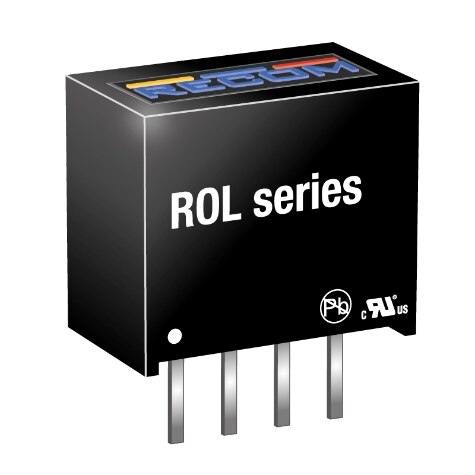

ROL Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 0.50W DC/DC 2KV UNREG 12VIN 12VOUT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Features | Voltage - Isolation | Power (Watts) | Voltage - Input (Min) [Min] | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Applications | Package / Case | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 85 °C | -40 C | 12 V | SCP | 2000 V | 0.5 W | 10.8 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 42 mA | 13.2 V | 86 % |
 Recom Power | 85 °C | -40 C | 5 V | SCP | 1000 V | 0.5 W | 10.8 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 100 mA | 13.2 V | |
Recom Power | 85 °C | -40 C | 15 V | SCP | 1000 V | 0.5 W | 10.8 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 33 mA | 13.2 V | 87 % |
 Recom Power | 85 °C | -40 C | 15 V | SCP | 1000 V | 0.5 W | 10.8 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 33 mA | 13.2 V | 87 % |
Recom Power | 85 °C | -40 C | 5 V | SCP | 1000 V | 0.5 W | 4.5 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 100 mA | 5.5 V | |
Recom Power | 85 °C | -40 C | 15 V | SCP | 2000 V | 0.5 W | 10.8 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 33 mA | 13.2 V | 87 % |
Recom Power | 85 °C | -40 C | 15 V | SCP | 1000 V | 0.5 W | 4.5 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 33 mA | 5.5 V | 87 % |
Recom Power | 85 °C | -40 C | 12 V | SCP | 1000 V | 0.5 W | 4.5 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 42 mA | 5.5 V | 86 % |
Recom Power | 85 °C | -40 C | 5 V | SCP | 2000 V | 0.5 W | 10.8 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 100 mA | 13.2 V | |
Recom Power | 85 °C | -40 C | 12 V | SCP | 2000 V | 0.5 W | 4.5 V | 1 | Isolated Module | 6 mm | 0.39 " | 10 mm | 11.5 mm | 0.45 " | 0.24 " | Through Hole | ITE (Commercial) | 4-SIP Module | 42 mA | 5.5 V | 86 % |
