ANT-5 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNA ADH 5G CELL 1.13 100 UFL

Part	Features	Features	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Power - Max [Max]	Number of Bands	Frequency Group	Return Loss	Termination	Gain	VSWR	Frequency (Center/Band)	Height (Max) [z]	Height (Max) [z]	RF Family/Standard	Antenna Type	Applications	VSWR [x]	Height (Max) [Max] [z]	Height (Max) [z]	Height (Max) [Max] [diameter]	Height (Max) [Max] [diameter]

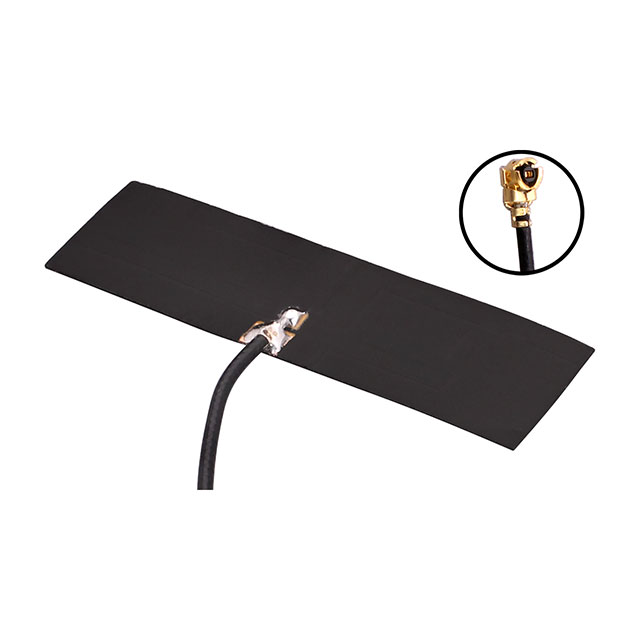

TE Connectivity AMP Connectors ANT-5GMFPC1-UFL-100	Cable	100 mm	2.4 GHz 2.69 GHz 3.7 GHz 3.8 GHz 4.2 GHz 5 GHz	2.3 GHz 2.496 GHz 3.3 GHz 3.55 GHz 3.7 GHz 4.4 GHz	Adhesive	2 W	6	Wide Band	-15.6 dB -12.7 dB -11.7 dB -10.9 dB -5.6 dB	I-PEX MHF1 U.FL (UMCC)	3 dBi 4.7 dBi 4.8 dBi 5.9 dBi 6.7 dBi	1.4 1.6 1.7 1.8 3.2	2.3 GHz 2.496 GHz 3.3 GHz 3.55 GHz 3.7 GHz 4.4 GHz	0.008 in	0.2 mm	Cellular	Flat Patch	5G Cellular LTE

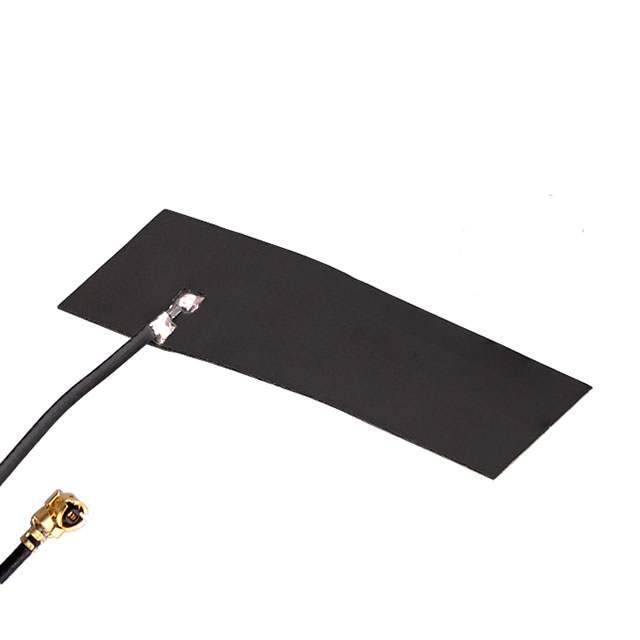

TE Connectivity AMP Connectors ANT-5GLFPC1-UFL-100	Cable	100 mm	803 MHz 960 MHz	698 MHz 791 MHz	Adhesive	2 W	2	Wide Band	-4.8 dB -2.5 dB	I-PEX MHF1 U.FL (UMCC)	-3.2 dBi -3 dBi		700 MHz 800 MHz		0.2 mm	Cellular	Flat Patch	5G Cellular LTE	3.7 6.8	0.01 in

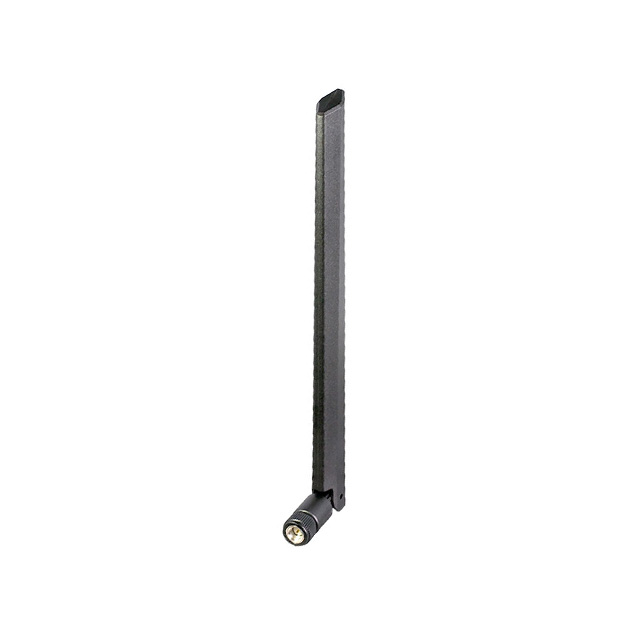

TE Connectivity AMP Connectors ANT-5GMWS1-SMA			3.7 GHz 4.2 GHz 4.99 GHz	3.55 GHz 3.7 GHz 4.94 GHz	Connector Mount	5 W	3	Wide Band			2.3 dBi 5.4 dBi 5.9 dBi	1.3 3.3 3.4	3.625 GHz 3.95 GHz 4.965 GHz		7.677 in	Cellular Navigation	Tilt Whip	5G GPRS LTE			195 mm

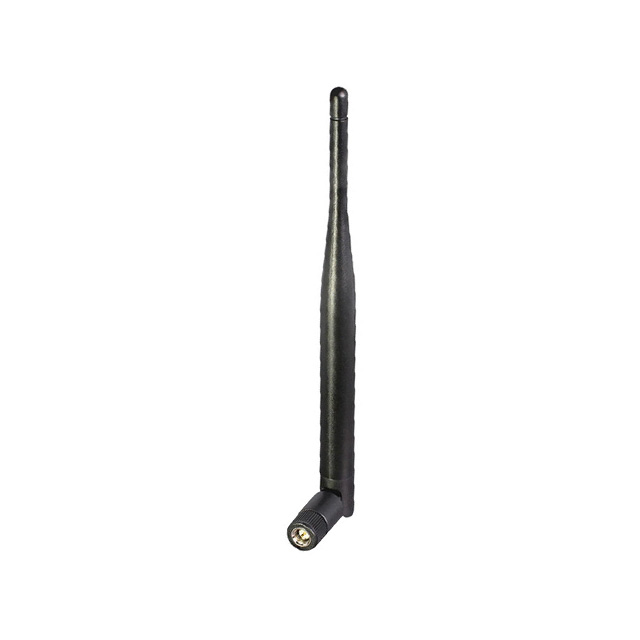

TE Connectivity AMP Connectors ANT-5GMWP1-SMA			3.7 GHz 4.2 GHz 4.99 GHz	3.55 GHz 3.7 GHz 4.94 GHz	Connector Mount	10 W	3	Wide Band			3.2 dBi 4.7 dBi 4.9 dBic		3.625 GHz 3.95 GHz 4.965 GHz		7.677 in	Cellular Navigation	Tilt Whip	5G GPRS LTE	1.4 1.7 2.2		195 mm
TE Connectivity AMP Connectors ANT-5GWWS2-SMA			2.2 GHz 2.4 GHz 2.7 GHz 3.8 GHz 4.2 GHz 4.99 GHz 698 MHz 803 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 3.3 GHz 3.7 GHz 4.94 GHz 617 MHz 698 MHz 791 MHz	Connector Mount	10 W	9	Wide Band	-10.9 dB -9.5 dB -7.7 dB -5.1 dB -4.4 dB 7.4 dB 8.1 dB		0.5 dBi 1.4 dBi 2.9 dBi 3.5 dBi 3.9 dBi 4 dBi	1.8 2 2.3 2.4 2.5 3.5 4	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 3.3 GHz 3.5 GHz 3.7 GHz 4.9 GHz 600 MHz 700 MHz 800 MHz 850 MHz 900 MHz			802.15.4 Bluetooth Cellular General ISM	Blade Tilt	4G 5G CAT-M1 Cellular GSM LPWA LTE LTE-M NB-IoT UMTS				186 mm	7.323 in
