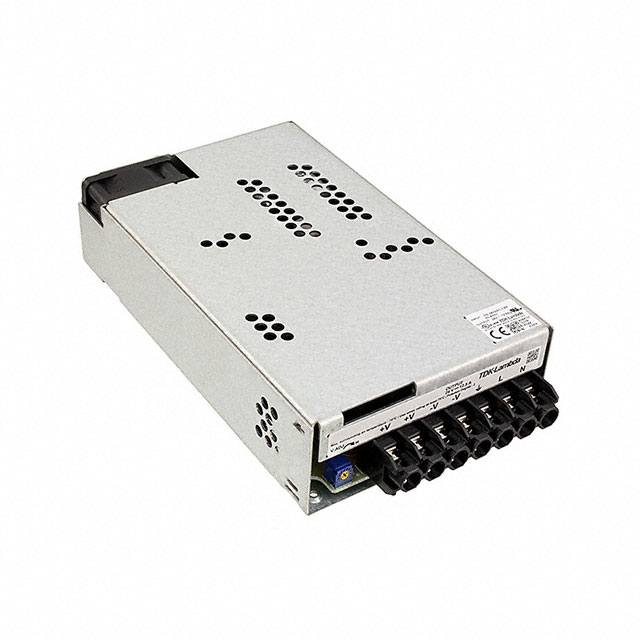

RWS300 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 302.4 W, 48 V, 6.3 A

Part	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Mounting Type	Features	Voltage - Output 1	Applications	Type	Efficiency	Number of Outputs	Voltage - Output 1 [custom]
TDK Corporation RWS300B-48/R	6.3 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	48 V	ITE (Commercial)	Enclosed	88 %	1
TDK Corporation RWS300B-24/CO2	12.5 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Universal Input	24 V	ITE (Commercial)	Conformal Coated Enclosed	88 %	1
TDK Corporation RWS300B-5/CO2	50 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Universal Input	5 V	ITE (Commercial)	Conformal Coated Enclosed	78 %	1
TDK Corporation RWS300B-36/CO2	8.4 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Universal Input		ITE (Commercial)	Conformal Coated Enclosed	88 %	1	36 V
TDK Corporation RWS300B-15	20 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Universal Input	15 V	ITE (Commercial)	Enclosed	84 %	1

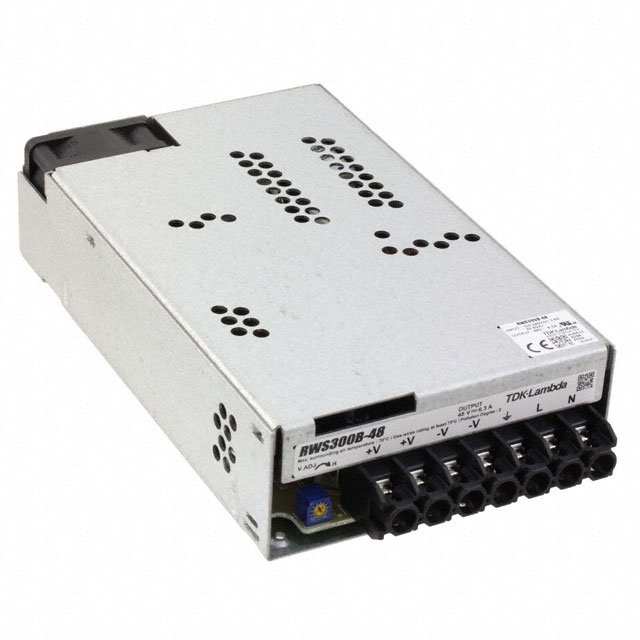

TDK Corporation RWS300B-48	6.3 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Universal Input	48 V	ITE (Commercial)	Enclosed	88 %	1
TDK Corporation RWS300B-36	8.4 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Universal Input		ITE (Commercial)	Enclosed	88 %	1	36 V
TDK Corporation RWS300B-12/CO2	25 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Universal Input	12 V	ITE (Commercial)	Conformal Coated Enclosed		1
TDK Corporation RWS300B-5/R	50 A	4.02 in	6.7 "	1.61 "	102 mm	41 mm	170 mm	300 W	CE	265 VAC	85 VAC	70 °C	-20 °C	3000 V	Chassis Mount	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	5 V	ITE (Commercial)	Enclosed	78 %	1
