892-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

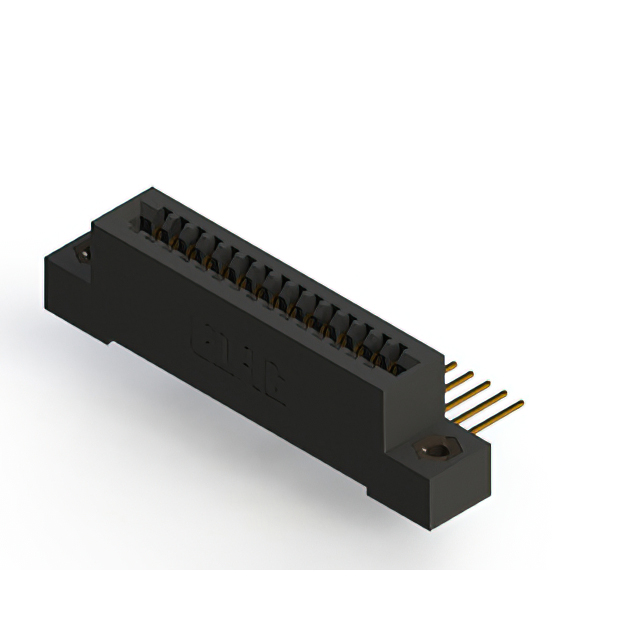

CONN EDGE SINGLE FML 15POS 0.100
| Part | Termination Rows | Material - Insulation | Termination | Card Thickness [Max] | Card Thickness [Min] | Gender | Contact Material | Contact Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions | Number of Positions/Bay/Row | Number of Rows | Color | Pitch | Pitch | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | Cantilever | Gold | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | 15 | 15 | 1 | Black | 0.1 " | 2.54 mm | Through Hole | Flush Mount M3 Threaded Insert Top Opening |
