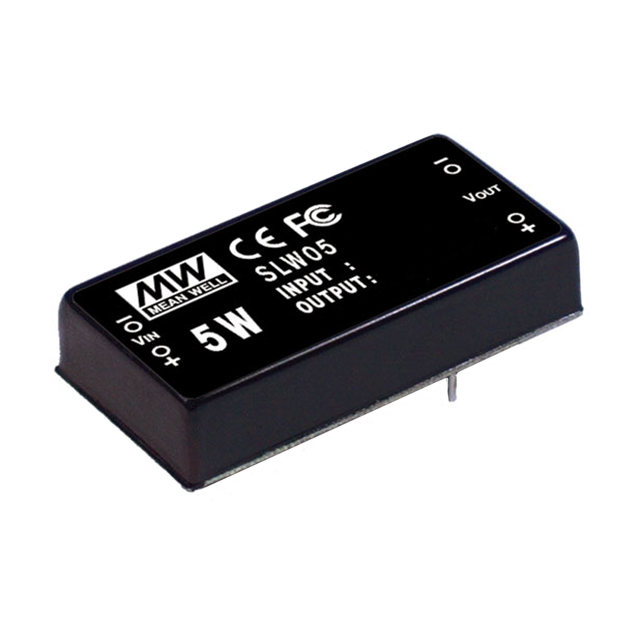

SLW05 Series

Catalog

DC DC CONVERTER 15V 5W

Part	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Isolation	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Current - Output (Max) [Max]	Features	Efficiency	Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]
MEAN WELL USA Inc. SLW05C-15	15 V	ITE (Commercial)	36 V	5 W	1000 V	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	5-DIP Module	333 mA	OCP SCP	85 %	Isolated Module	1	-25 °C	71 °C	72 V
MEAN WELL USA Inc. SLW05B-09	9 V	ITE (Commercial)	18 V	5 W	1000 V	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	5-DIP Module	556 mA	OCP SCP	80 %	Isolated Module	1	-25 °C	71 °C	36 V
MEAN WELL USA Inc. SLW05A-09	9 V	ITE (Commercial)	9 V	5 W	1000 V	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	5-DIP Module	556 mA	OCP SCP	80 %	Isolated Module	1	-25 °C	71 °C	18 V
MEAN WELL USA Inc. SLW05C-05	5 V	ITE (Commercial)	36 V	5 W	1000 V	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	5-DIP Module	1 A	OCP SCP	77 %	Isolated Module	1	-25 °C	71 °C	72 V
MEAN WELL USA Inc. SLW05A-15	15 V	ITE (Commercial)	9 V	5 W	1000 V	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	5-DIP Module	333 mA	OCP SCP	81 %	Isolated Module	1	-25 °C	71 °C	18 V
MEAN WELL USA Inc. SLW05B-05	5 V	ITE (Commercial)	18 V	5 W	1000 V	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	5-DIP Module	1 A	OCP SCP	77 %	Isolated Module	1	-25 °C	71 °C	36 V
