745781 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

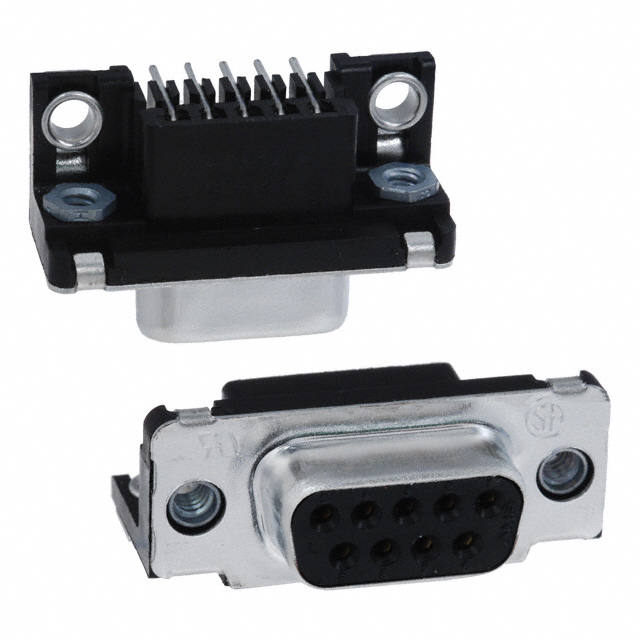

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Contact Material | Color | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Flange Feature | Flange Feature | Material Flammability Rating | Current Rating (Amps) | Connector Type | Contact Finish | Mounting Type | Connector Style | Number of Rows [custom] | Backset Spacing | Backset Spacing | Number of Positions | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Phosphor Bronze | Black | 125 VDC | Thermoplastic | -55 C | 105 ░C | Signal | Flash | 1 | DE E | Ground Strap | Housing/Shell | 4-40 | UL94 V-0 | 6 A | Receptacle Female Sockets | Gold | Right Angle Through Hole | D-Sub | 2 | 8.08 mm | 0.318 " | 9 | Solder |
