QTLP67 Series

Catalog

LED RED CLEAR 2PLCC SMD

Part	Height (Max) [Max] [z]	Lens Transparency	Lens Color	Millicandela Rating	Wavelength - Dominant	Package / Case	Voltage - Forward (Vf) (Typ)	Color	Supplier Device Package	Lens Size [diameter]	Mounting Type	Wavelength - Peak	Configuration	Current - Test	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
ON Semiconductor QTLP670C9TR	2.1 mm	Clear	Colorless	40 mcd	645 nm	2-PLCC	1.9 V	Red	2-PLCC	2.4 mm	Surface Mount	660 nm	Standard	20 mA	120 °	2.8 mm	3.2 mm
ON Semiconductor QTLP670C74TR	2.1 mm	Clear	Colorless			4-PLCC		Green Red	4-PLCC	2.4 mm	Surface Mount	565 nm 660 nm	Independent	20 mA 20 mA	120 °	2.8 mm	3.2 mm	2.1 V	1.9 V	645 nm	570 nm	25 mcd	20 mcd

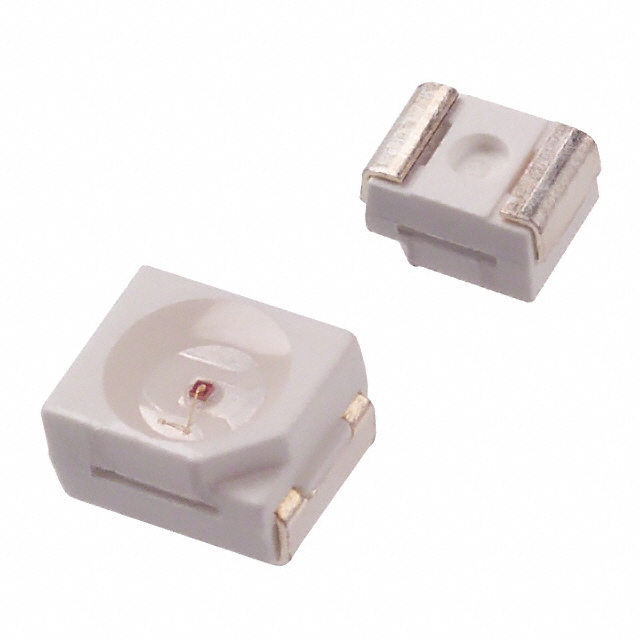

ON Semiconductor QTLP670C3TR	2.1 mm	Clear	Colorless	10 mcd	590 nm	2-PLCC	2 V	Yellow	2-PLCC	2.4 mm	Surface Mount	585 nm	Standard	20 mA	120 °	2.8 mm	3.2 mm
ON Semiconductor QTLP670CWTR	2.1 mm	Clear	Colorless	250 mcd		2-PLCC	3.5 V	White	2-PLCC	2.4 mm	Surface Mount		Standard	20 mA	120 °	2.8 mm	3.2 mm
ON Semiconductor QTLP670CYTR	2.1 mm	Clear	Colorless	65 mcd	589 nm	2-PLCC	2 V	Yellow	2-PLCC	2.4 mm	Surface Mount	590 nm	Standard	20 mA	120 °	2.8 mm	3.2 mm
ON Semiconductor QTLP670CBTR	2.1 mm	Clear	Colorless	30 mcd	465 nm	2-PLCC	3.8 V	Blue	2-PLCC	2.4 mm	Surface Mount	430 nm	Standard	20 mA	120 °	2.8 mm	3.2 mm
