AWG28-15 Series

Catalog

CBL RIBN 15COND 0.05 MLT FOOT

Part	Insulation Resistance	Conductor Material	Length	Spool Size [x]	Spool Size [x]	First Conductor Mark	Wire Gauge	Operating Temperature	Length	Length	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ribbon Thickness	Ribbon Thickness	Jacket Color	Cable Type	Jacket (Insulation) Material	Number of Conductors	Pitch	Pitch	Ribbon Width [custom]	Ribbon Width [custom]	Shielding	Ratings	Operating Temperature [Min]	Operating Temperature [Max]

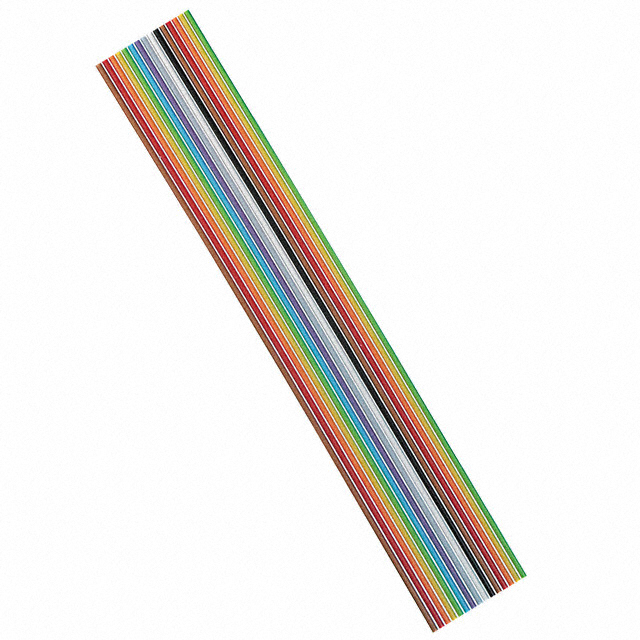

Assmann WSW Components AWG28-15/F/300	100 MOhms	Copper Tinned	Enter Number of Feet in Order Quantity	300 ft	91.44 m	Red	28 AWG	105 C	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	50 ft	15.24 m	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Multiple	Flat Cable	Poly-Vinyl Chloride (PVC)	15	0.05 in	1.27 mm	19.05 mm	0.75 in	Unshielded	UL Style 2651

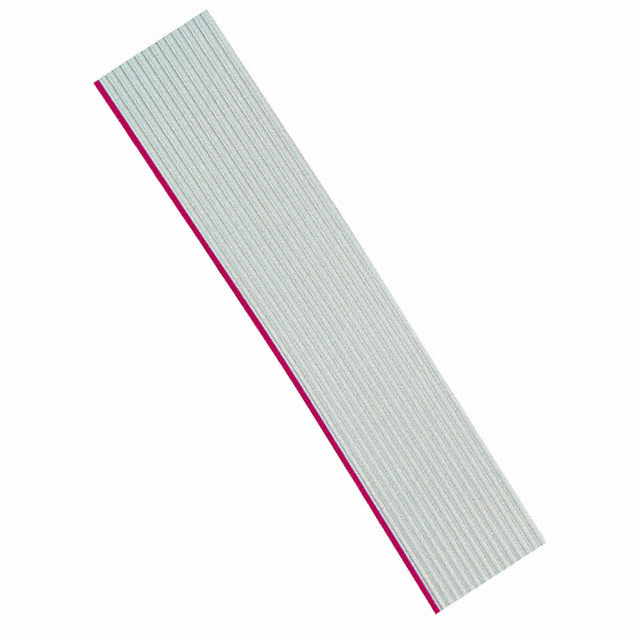

Assmann WSW Components AWG28-15/G/300	100 MOhms	Copper Tinned	Enter Number of Feet in Order Quantity	300 ft	91.44 m	Red	28 AWG		3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	50 ft	15.24 m	36 AWG	7 Strands	300 VDC	0.89 mm	0.035 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	15	0.05 in	1.27 mm	19.05 mm	0.75 in	Unshielded	UL Style 2651	-10 °C	105 ░C
