DCNLEV100-EAN Series

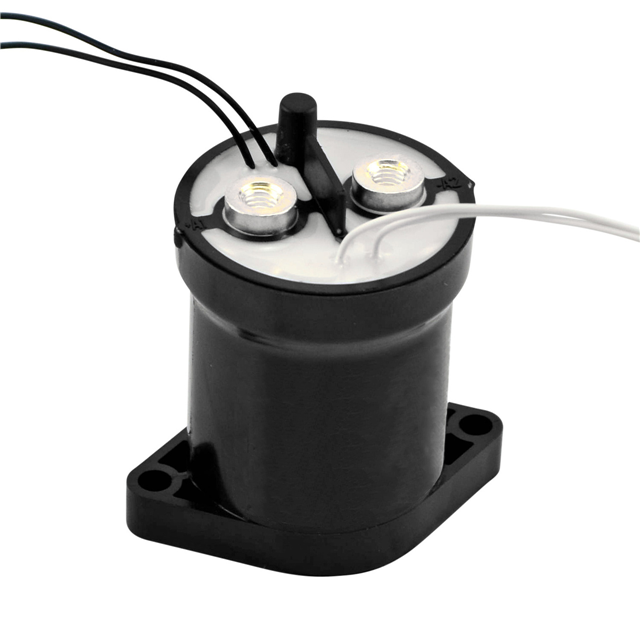

DCN 100A 750V 48V Cl SPST IP67 BM AUX NP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

DCN 100A 750V 48V Cl SPST IP67 BM AUX NP

Part	Operate Time	Coil Power	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Termination Style	Must Operate Voltage	Coil Resistance	Switching Voltage	Contact Rating (Current)	Features	Release Time	Contact Form	Mounting Type	Coil Current
Littelfuse/Commercial Vehicle Products DCNLEV100-EAN	25 ms	6 W	4.8 VDC	85 °C	-40 °C	48 VDC	Stud Wire Leads	33 VDC	392 Ohms	750 VDC	100 A	Auxiliary Contacts	10 ms	SPST-NO (DM) (1 Form X)	Chassis Mount	122 mA

Catalog

DCN 100A 750V 48V Cl SPST IP67 BM AUX NP

Key Features

• High-current (100A) and high-voltage (750V) contactor for electric vehicle (EV) and eMobility applications

• 48V dc (nominal), 33-52V dc (working) coil voltage

• Non-polarized load terminals

• Auxiliary contact rated for 2A at 30V dc and 3A at 125V dc

• Bottom mounting style

Description

Designed specifically for electric vehicle (EV) and eMobility applications, the DCNLEV100 Series 750V 100A High-Voltage DC Contactor Relay is ideal for battery power supply, charging pill, motor control, circuit insulation, circuit protection, and industrial machinery safety applications. Thanks to a magnetic arc blowout design and a sealed, gas-filled chamber, any electrical arc between the contacts is safely dissipated. This design also allows the electric vehicle contactor to make/break higher voltages. This configuration of the DCNLEV100 Series high-voltage DC contactor (DCNLEV100-EAN) features a 48V coil rating, non-polarized contacts, an auxiliary contact, and a bottom mounting style.
