CIM-9-40 Series

Catalog

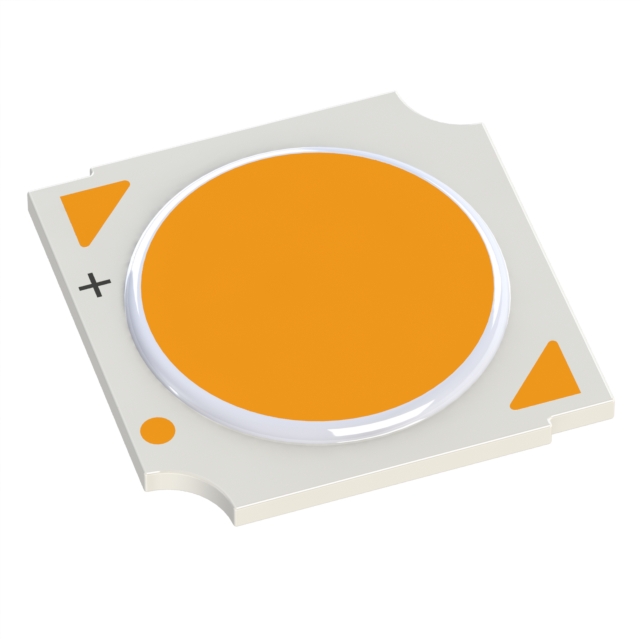

LED COB CIM9 GEN3 WHT SQU 4000K

Part	Height [z]	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Temperature - Test	Current - Max [Max]	CCT (K)	CCT (K)	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Lens Type	CRI (Color Rendering Index)	Configuration	Type	Current - Test	Luminous Flux @ Current/Temperature
Luminus Devices Inc. CIM-9-40-90-36-AC30-F4-3	1.37 mm	9.6 mm	13.5 mm	13.5 mm	67 lm/W	85 °C	340 mA	4000 K	3-Step MacAdam Ellipse	120 °	Neutral White	33.8 V	Flat	90	Square	Chip On Board (COB)	360 mA	820 lm
Luminus Devices Inc. CIM-9-40-80-36-AC30-F4-3	1.37 mm	9.6 mm	13.5 mm	13.5 mm	77 lm/W	85 °C	340 mA	4000 K	3-Step MacAdam Ellipse	120 °	Neutral White	33.8 V	Flat	80	Square	Chip On Board (COB)	360 mA	945 lm
Luminus Devices Inc. CIM-9-40-70-36-AC30-F4-3	1.37 mm	9.6 mm	13.5 mm	13.5 mm	83 lm/W	85 °C	340 mA	4000 K	3-Step MacAdam Ellipse	120 °	Neutral White	33.8 V	Flat	70	Square	Chip On Board (COB)	360 mA	1015 lm
