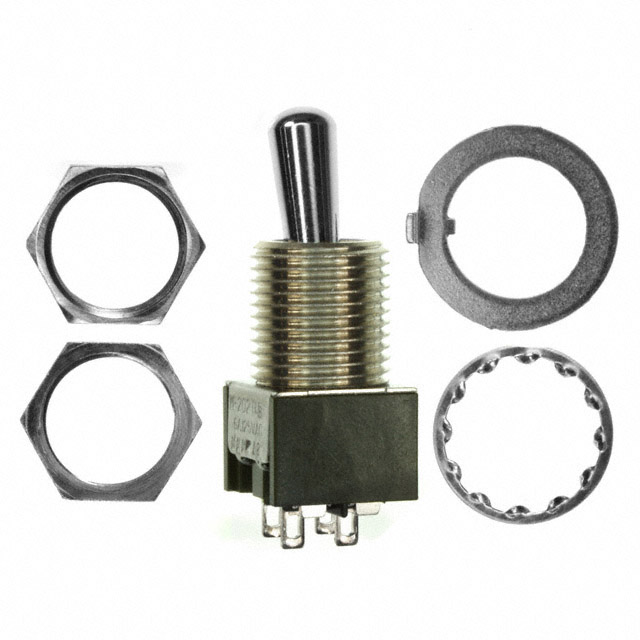

M2021BB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPST 6A 125V
| Part | Electrical Life | Actuator Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Illumination | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Voltage Rating - AC | Bushing Thread | Circuit | Mounting Type | Termination Style | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Black Cap | 85 °C | -30 ░C | On-Off | Non-Illuminated | 4 A 6 A | 12.5 mm | 12.3 mm | 125 V | M12 x 1 | DPST | Panel Mount | Solder Lug | Standard Round with Cap | 30 V |
 NKK Switches | 25000 Steps | Brass Chrome Plated | Epoxy Sealed Terminals | 85 °C | -30 ░C | On-Off | Non-Illuminated | 4 A 6 A | 12.5 mm | 11.5 mm | 125 V | M12 x 1 | DPST | Panel Mount | Solder Lug | Standard Round | 30 V |
