860-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 40POS 1MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Voltage Rating	Insulation Material	Insulation Color	Contact Shape	Number of Positions Loaded	Shrouding	Number of Rows	Contact Finish - Post	Contact Finish - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Type	Insulation Height	Insulation Height	Connector Type	Material Flammability Rating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

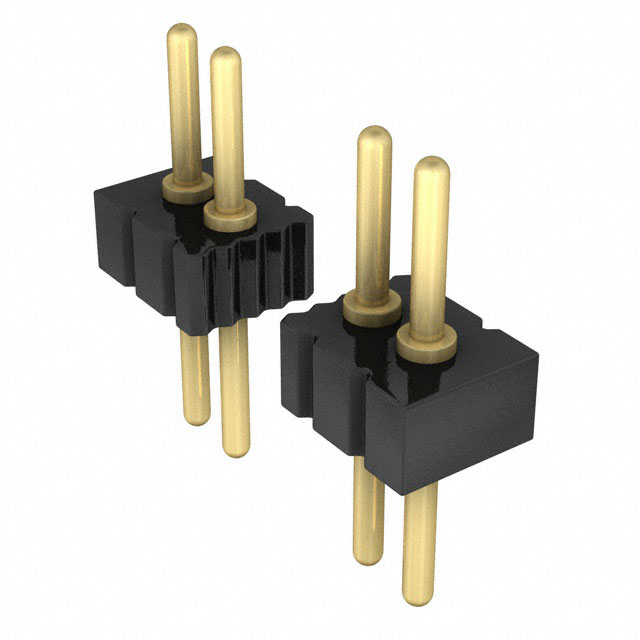

Preci-Dip 860-10-040-10-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	40	0.241 in	6.13 mm	Brass	2.2 mm	0.086 in	2.5 mm	0.098 in	1 mm	0.039 in	Through Hole	Male Pin	1.2 mm	0.047 in	Header	UL94 V-0	Solder	0.25 µm	10 µin

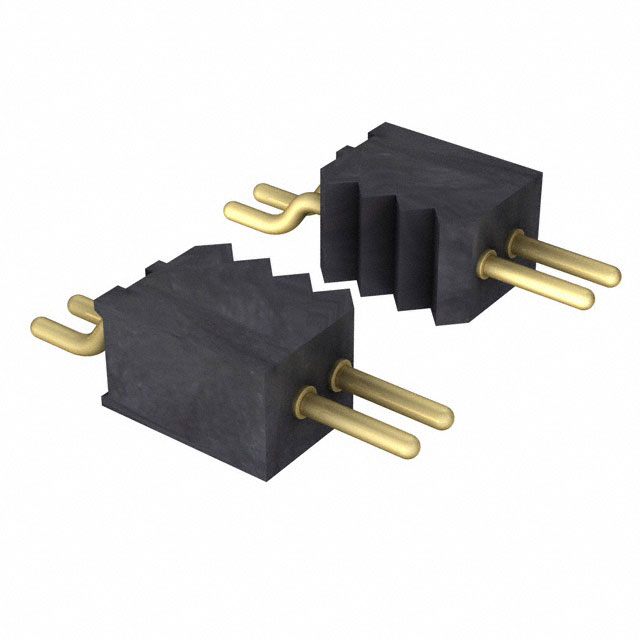

Preci-Dip 860-10-020-40-001191	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	20			Brass	2.2 mm	0.086 in			1 mm	0.039 in	Right Angle Surface Mount	Male Pin	2.2 mm	0.087 "	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-008-40-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	8			Brass	2.2 mm	0.086 in			1 mm	0.039 in	Right Angle Surface Mount	Male Pin	2.2 mm	0.087 "	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-049-40-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	49			Brass	2.2 mm	0.086 in			1 mm	0.039 in	Right Angle Surface Mount	Male Pin	2.2 mm	0.087 "	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-025-10-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	25	0.241 in	6.13 mm	Brass	2.2 mm	0.086 in	2.5 mm	0.098 in	1 mm	0.039 in	Through Hole	Male Pin	1.2 mm	0.047 in	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-042-40-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	42			Brass	2.2 mm	0.086 in			1 mm	0.039 in	Right Angle Surface Mount	Male Pin	2.2 mm	0.087 "	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-010-40-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	10			Brass	2.2 mm	0.086 in			1 mm	0.039 in	Right Angle Surface Mount	Male Pin	2.2 mm	0.087 "	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-007-40-001191	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	7			Brass	2.2 mm	0.086 in			1 mm	0.039 in	Right Angle Surface Mount	Male Pin	2.2 mm	0.087 "	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-023-40-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	23			Brass	2.2 mm	0.086 in			1 mm	0.039 in	Right Angle Surface Mount	Male Pin	2.2 mm	0.087 "	Header	UL94 V-0	Solder	0.25 µm	10 µin
Preci-Dip 860-10-005-10-001101	10 Áin	0.25 çm	-55 C	125 °C	Push-Pull	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	All	Unshrouded	1	Gold	Gold	5	0.241 in	6.13 mm	Brass	2.2 mm	0.086 in	2.5 mm	0.098 in	1 mm	0.039 in	Through Hole	Male Pin	1.2 mm	0.047 in	Header	UL94 V-0	Solder	0.25 µm	10 µin
