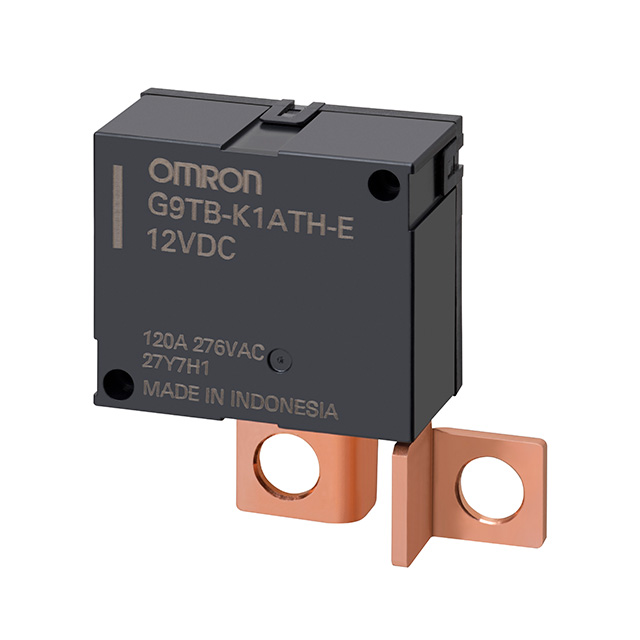

G9TB-K Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 120A 12V
| Part | Coil Voltage | Contact Rating (Current) | Contact Form | Load - Max Switching | Release Time | Relay Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Coil Resistance | Switching Voltage [Max] | Coil Current | Operate Time | Features | Coil Type | Contact Material | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 12 VDC | 120 A | SPST-NO (1 Form A) | 33120 VA | 20 ms | General Purpose | Square Lug | 85 °C | -40 °C | Free Hanging | 26.6 Ohms | 276 VAC | 451 mA | 20 ms | UL Pending | Latching Dual Coil | Silver Alloy | 9.6 VDC |
 Omron Electronics Inc-EMC Div | 12 VDC | 120 A | SPST-NO (1 Form A) | 33120 VA | 20 ms | General Purpose | PC Pin Weld Terminal | 85 °C | -40 °C | Free Hanging | 26.6 Ohms | 276 VAC | 451 mA | 20 ms | UL Pending | Latching Dual Coil | Silver Alloy | 9.6 VDC |
