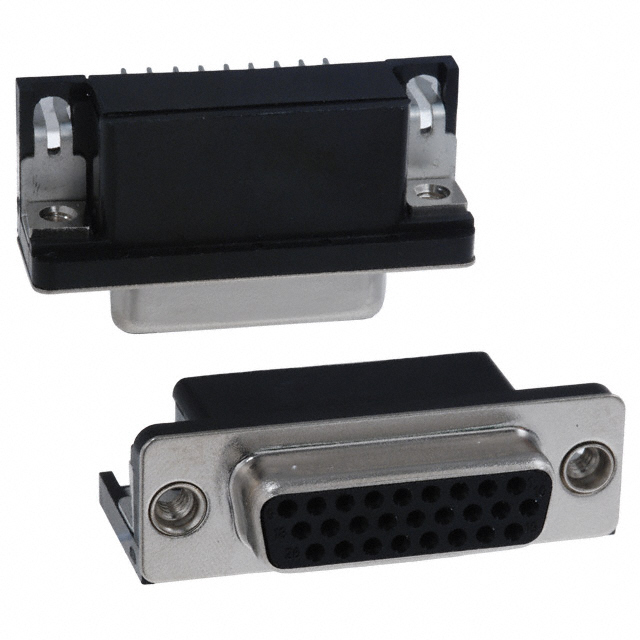

748481 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN D-SUB HD RCPT 26P R/A SLDR

Part	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Termination	Contact Finish	Number of Positions	Mounting Type	Current Rating (Amps)	Number of Rows [custom]	Connector Style	Shell Material, Finish	Material Flammability Rating	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Finish Thickness	Flange Feature
TE Connectivity AMP Connectors 2-748481-4	Black	125 VDC	-55 C	105 ░C	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	Gold	26	Right Angle Through Hole	2 A	3	D-Sub High Density	Nickel Plated Steel	UL94 V-0	Signal	2	DA A	Receptacle Female Sockets	Board Lock	0.38 µm	15 µin	4-40 Mating Side Female Screwlock
TE Connectivity AMP Connectors 748481-6	Black	125 VDC	-55 C	105 ░C	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	Gold	26	Right Angle Through Hole	2 A	3	D-Sub High Density	Nickel Plated Steel	UL94 V-0	Signal	2	DA A	Receptacle Female Sockets	Board Lock	0.76 Ám	30 Áin	4-40 Mating Side Female Screwlock
TE Connectivity AMP Connectors 2-748481-3	Black	125 VDC	-55 C	105 ░C	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	Gold	26	Right Angle Through Hole	2 A	3	D-Sub High Density	Nickel Plated Steel	UL94 V-0	Signal	2	DA A	Receptacle Female Sockets	Board Lock			Housing/Shell	Flash	4-40
TE Connectivity AMP Connectors 2-748481-5	Black	125 VDC	-55 C	105 ░C	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	Gold	26	Right Angle Through Hole	2 A	3	D-Sub High Density	Nickel Plated Steel	UL94 V-0	Signal	2	DA A	Receptacle Female Sockets	Board Lock			4-40 Mating Side Female Screwlock	Flash
TE Connectivity AMP Connectors 1-748481-9	Black	125 VDC	-55 C	105 ░C	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	Gold	26	Right Angle Through Hole	2 A	3	D-Sub High Density	Nickel Plated Steel	UL94 V-0	Signal	2	DA A	Receptacle Female Sockets	Board Lock	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)
TE Connectivity AMP Connectors 2-748481-2	Black	125 VDC	-55 C	105 ░C	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	Gold	26	Right Angle Through Hole	2 A	3	D-Sub High Density	Nickel Plated Steel	UL94 V-0	Signal	2	DA A	Receptacle Female Sockets	Board Lock	0.38 µm	15 µin	Housing/Shell		4-40
TE Connectivity AMP Connectors 2-748481-7	Black	125 VDC	-55 C	105 ░C	Phosphor Bronze	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	Gold	26	Right Angle Through Hole	2 A	3	D-Sub High Density	Nickel Plated Steel	UL94 V-0	Signal	2	DA A	Receptacle Female Sockets	Board Lock			Housing/Shell (Unthreaded)	Flash
