PAH.N0 Series
Manufacturer: LEMO
Beta
⌘K

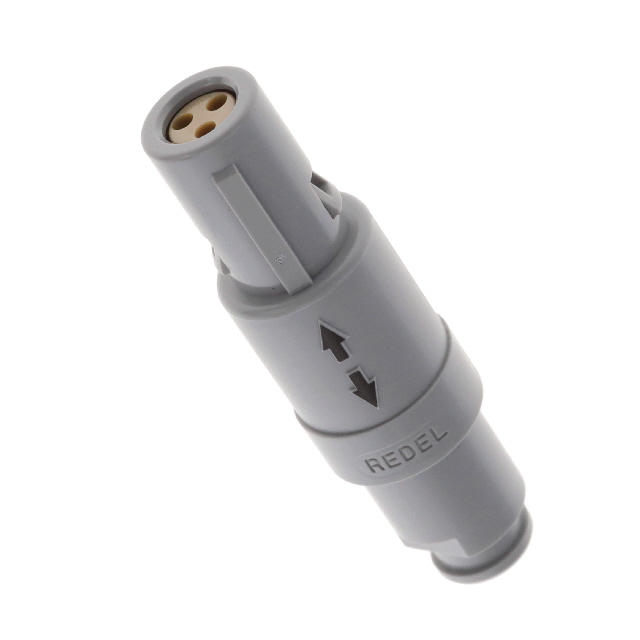

CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Color | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Shielding | Current Rating (Amps) | Insert Material | Connector Type | Voltage Rating | Features | Ingress Protection | Orientation | Shell Size - Insert | Number of Positions | Primary Material | Backshell Material, Plating | Mounting Type | Contact Finish - Mating | Fastening Type | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Gray | Polysulfone (PSU) | 150 °C | -50 °C | Medical | Unshielded | 9 A | Polyetheretherketone (PEEK) | Plug Female Sockets | 250 VAC | Backshell | IP50 - Dust Protected | H | N03 | 3 | Plastic | Polysulfone (PSU) | Free Hanging (In-Line) | Gold | Detent Lock Push-Pull | ||
0.157 in | 0.205 in | Gray | Polysulfone (PSU) | 150 °C | -50 °C | Medical | Unshielded | 9 A | Polyetheretherketone (PEEK) | Plug Female Sockets | 250 VAC | Backshell | IP50 - Dust Protected | H | N03 | 3 | Plastic | Polysulfone (PSU) | Free Hanging (In-Line) | Gold | Detent Lock Push-Pull | 4 mm 5.2 mm |
