ERJ-XGN Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

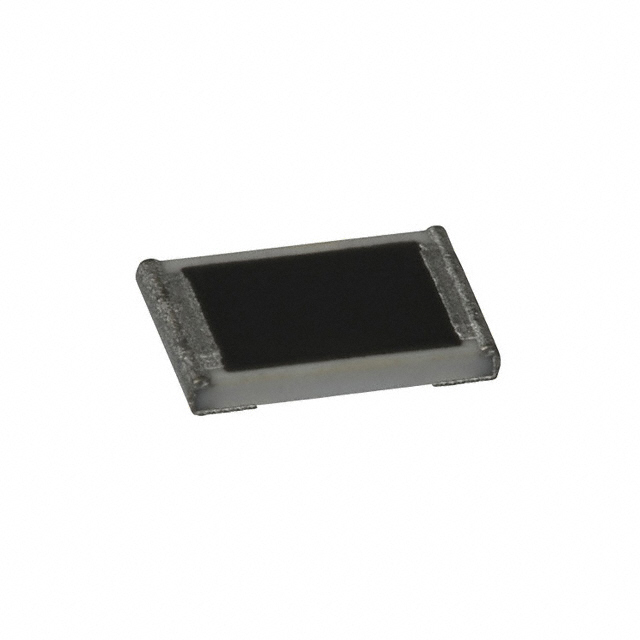

RES 909K OHM 1% 1/32W 01005

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Temperature Coefficient	Supplier Device Package	Resistance	Composition	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ERJ-XGNF9093Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	200 ppm/°C	01005	909 kOhms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF5103Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	200 ppm/°C	01005	510 kOhms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF12R7Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	300 ppm/°C	01005	12.7 Ohms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF7681Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	200 ppm/°C	01005	7.68 kOhms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF1301Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	200 ppm/°C	01005	1.3 kOhms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF63R4Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	300 ppm/°C	01005	63.4 Ohms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF1050Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	200 ppm/°C	01005	105 Ohms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF2211Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	200 ppm/°C	01005	2.21 kOhms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNJ820Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	300 ppm/°C	01005	82 Ohms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	5 %	0.006 in	0.15 mm
Panasonic Industrial Automation Sales ERJ-XGNF20R0Y	0.016 in	0.008 in	0.2 mm	0.4 mm	0.03125 W	30 mW	300 ppm/°C	01005	20 Ohms	Thick Film	01005	0402 Metric	-55 °C	125 °C	2	1 %	0.006 in	0.15 mm
